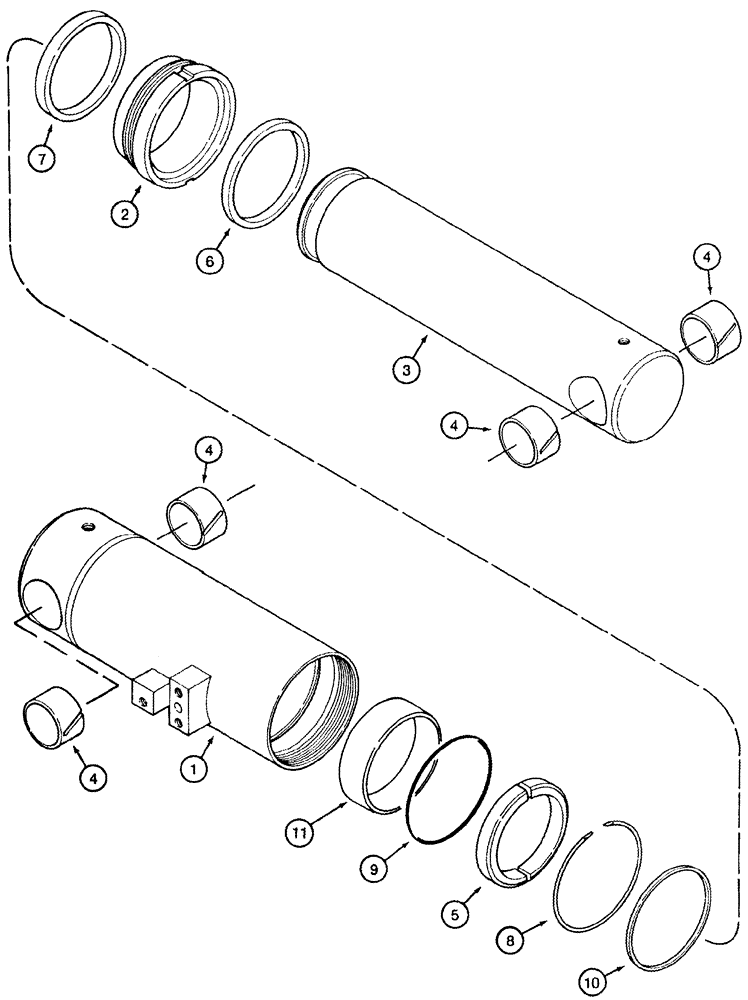

Запчасти Case IH CPX420 (08-26) - DRUM LIFT CYLINDER ASSEMBLY - 4 ROW WIDE - BSN Y6T011031 (07) - HYDRAULICS

295532A1

CYLINDER ASSY.

Drum Lift, 98 ID x 235 mm strk, Inc. 1 - 11

2шт.

1

107838A1

TUBE

1шт.

2

1980306C1

GLAND

1шт.

3

1346283C1

PISTON ROD

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

5

NSS

NOT SOLD SEPARAT

Piston, 2 Piece

1шт.

1980307C1

SEAL KIT

Inc. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

NSS

NOT SOLD SEPARAT

Wire

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring

1шт.

11

296163A1

SPACER

Cylinder

1шт.
