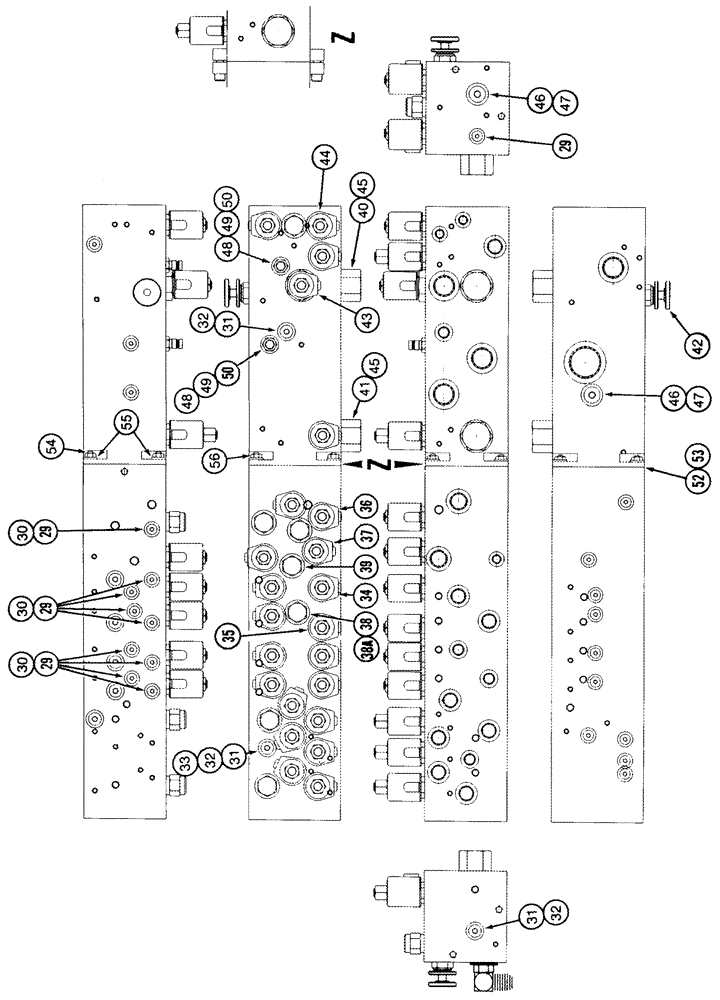

Запчасти Case IH CPX420 (08-18) - HYDRAULIC MANIFOLD VALVE - UNITS WITH ROCKSHAFT KICKBACK (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
87445252
MANIFOLD VALVE
Inc. 1 - 56
1шт.
29
278548
PLUG,Hex, 7/16"-20 ORB
Incl 30
10шт.
30
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
31
9625178
PLUG,9/16" - 18 ORB
Incl. 32
3шт.
32
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
33
107419A1
PLUG
1шт.
34
87252C1
SOLENOID VALVE
2-Way, Basket Door Raise Tank
1шт.
35
87252C1
SOLENOID VALVE
2-Way, Basket Door Lower Tank
1шт.
36
87252C1
SOLENOID VALVE
2-Way, Compactor Raise Tank
1шт.
37
87252C1
SOLENOID VALVE
2-Way, Inc. 37A, Compactor Lower Tank
1шт.
37a
149942C1
SEAL KIT
Seal Replacement, Not Illustrated
1шт.
38
149938C1
CHECK VALVE,7/8" - 14
Inc. 38A, Basket Door
1шт.
38a
149942C1
SEAL KIT
Seal Replacement
1шт.
39
149938C1
CHECK VALVE,7/8" - 14
Inc. 39A
1шт.
39a
149942C1
SEAL KIT
Seal Replacement, Not Illustrated
1шт.
40
1340838C1
PILOT VALVE
3-Way, Directional Control, Basket Lift
1шт.
41a
1341812C1
O-RING KIT
Seal Replacement, Not Illustrated
1шт.
42
107420A1
VALVE PRESSURE RELIE
1шт.
43
1288953C2
SOLENOID VALVE
2-Way, Inc. 43A, Basket Lower
1шт.
43a
1288954C1
SEAL KIT
Seal Replacement, Not Illustrated
1шт.
44
187849C1
SOLENOID VALVE
4-Way, Inc. 44A, Cartridge Only
1шт.
44a
187850C1
SEAL KIT
Seal Replacement, Not Illustrated
1шт.
45
107421A1
PLATE
2шт.
46
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 47
2шт.
47
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
48
1541849C1
COUPLING
Inc. 49, 50
2шт.
49
H434163
DUST CAP
1шт.
50
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
52
238-6116
O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro
2шт.
53
238-6110
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
1шт.
54
NSS
NOT SOLD SEPARAT
Stud
4шт.
56
129-139
NUT,3/8"-16, G8
4шт.
1340843C1
SOLENOID,12V
12V, Used With 1 - 9, 16 - 21, 34 - 37, 43, 44
1шт.
