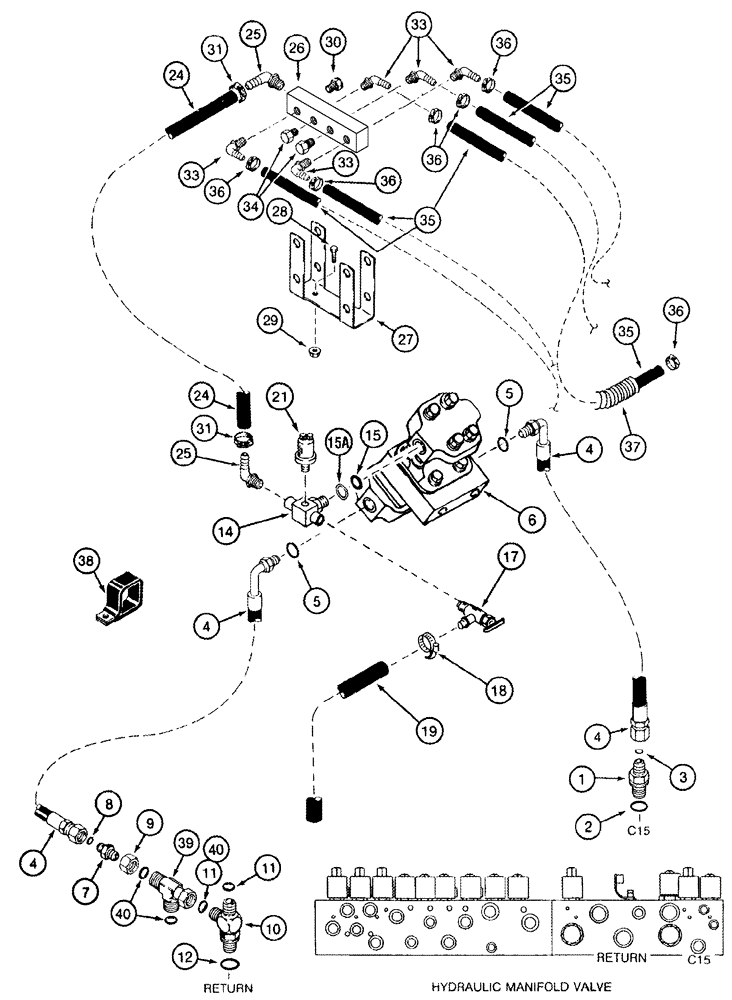

Запчасти Case IH CPX420 (08-15) - DRUM BAR LUBRICATION PLUMBING SYSTEM (07) - HYDRAULICS

1

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 2, 3

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

1988889C1

HOSE,12.7mm ID x 900mm L

900 mm (35-1/2 in)

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

250706A2

LUBE PUMP

1шт.

250706A2R

REMAN-HYD PUMP

CPX420 (5/05-8/06)

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

Inc. 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

203-904

TUBE NUT,1 3/16"-12 ORFS

1шт.

10

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 11, 12

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

275824A1

FITTING

Inc. 15, 15A

1шт.

15

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

15a

306803A1

RING

1шт.

17

301803R1

SHUT-OFF VALVE

Drain

1шт.

18

1954736C1

HOSE CLAMP,#24

3шт.

19

1347032C2

HOSE,15.75 mm ID x 1350.00 mm

1350 mm (53-1/8 in), Cut From 1977295CX

1шт.

21

1987419C1

PROBE

1шт.

24

122468A1

HYDRAULIC HOSE

Pump Outlet, 1600 mm (63 in), Cut From 122469A1

1шт.

25

122567A1

ELBOW

3/4 stem x 1/2 PT

2шт.

26

87444651

MANIFOLD

1шт.

27

1546016C1

SUPPORT

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30

37290D

LUBE NIPPLE,1/4"-18 NPT x 1.25" lg, But Hd

1шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

33

1546018C1

ELBOW

1/4 PT x 3/8 stem

4-5шт.

34

111491A1

PLUG

1/4 PT

3-4шт.

35

122466A1

HYDRAULIC HOSE

Drum Lube, 5080 mm (200 in), Cut From 122467A1

4-5шт.

36

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

10шт.

37

1546371C1

PROTECTOR

4-5шт.

38

1301387C2

CLIP

2 in ID

2шт.

39

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Return Hose at Lower Tee Port, Inc. 40

1шт.

40

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
