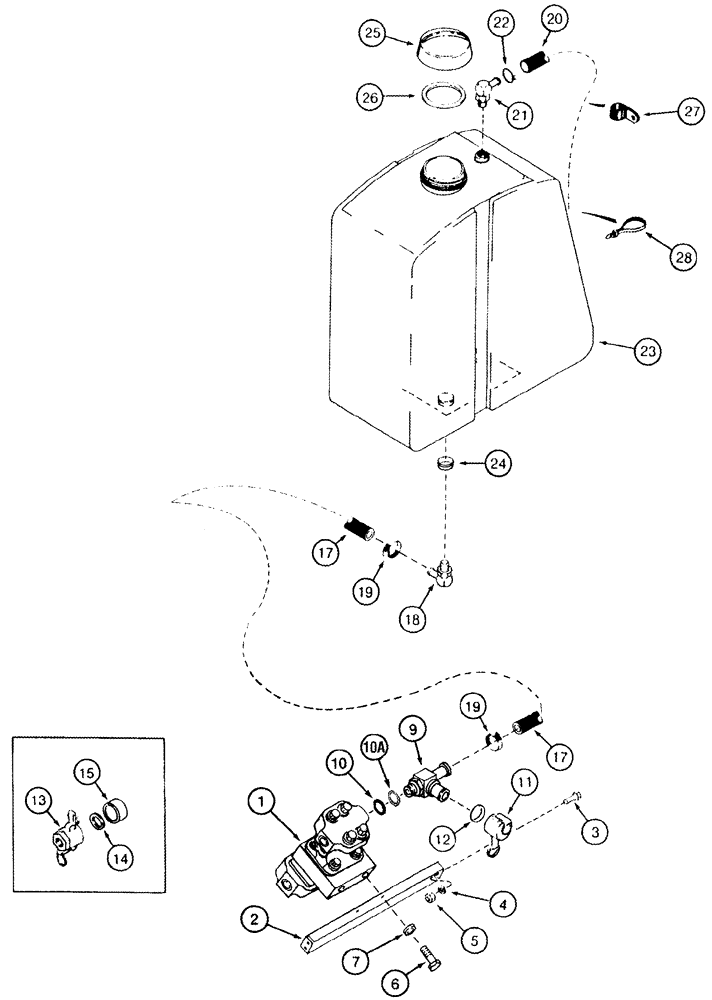

Запчасти Case IH CPX420 (08-14) - DRUM BAR LUBRICATION RESERVOIR SYSTEM (07) - HYDRAULICS

1

250706A2

LUBE PUMP

1шт.

250706A2R

REMAN-HYD PUMP

CPX420 (5/05-8/06)

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87319428

PANEL SUPPORT

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

5

425-105

NUT,5/16"-18, G5

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

9

275822A1

FITTING

Special, Inc. 10, 10A

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

10a

306803A1

RING

1шт.

11

118754A1

PLUG

Inc. 12

1шт.

12

118757A1

GASKET

1шт.

13

118755A1

COUPLING

3/4 PT, Inc. 14

1шт.

14

118757A1

GASKET

1шт.

15

118756A1

PLUG

Special

1шт.

17

118758A1

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

Pump Inlet, Cut from 1990222C1

1шт.

18

134271C2

ELBOW,ELBOW, 90

1 stem x 3/4 PT

1шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

20

201763C2

HOSE,12.70 mm ID x 1371.60 mm

Tank Overflow, Cut From 665181R1

1шт.

21

1329210C1

ELBOW

1/2 stem x 3/4 PT

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

23

87335116

TANK

Inc. 24 - 26

1шт.

24

87318682

BULKHEAD

3/4 PT, 4 Piece

2шт.

25

87318697

CAP ASSY.

Inc. 26

1шт.

26

NSS

NOT SOLD SEPARAT

Gasket

1шт.

27

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

28

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

29

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Attach Ref. 17 to RH Side Air Plenum

1шт.

30

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32, Adjustable (Not Shown)

1шт.

31

175778H1

ADAPTER

1/2 to 3/8, (Not Shown)

1шт.
