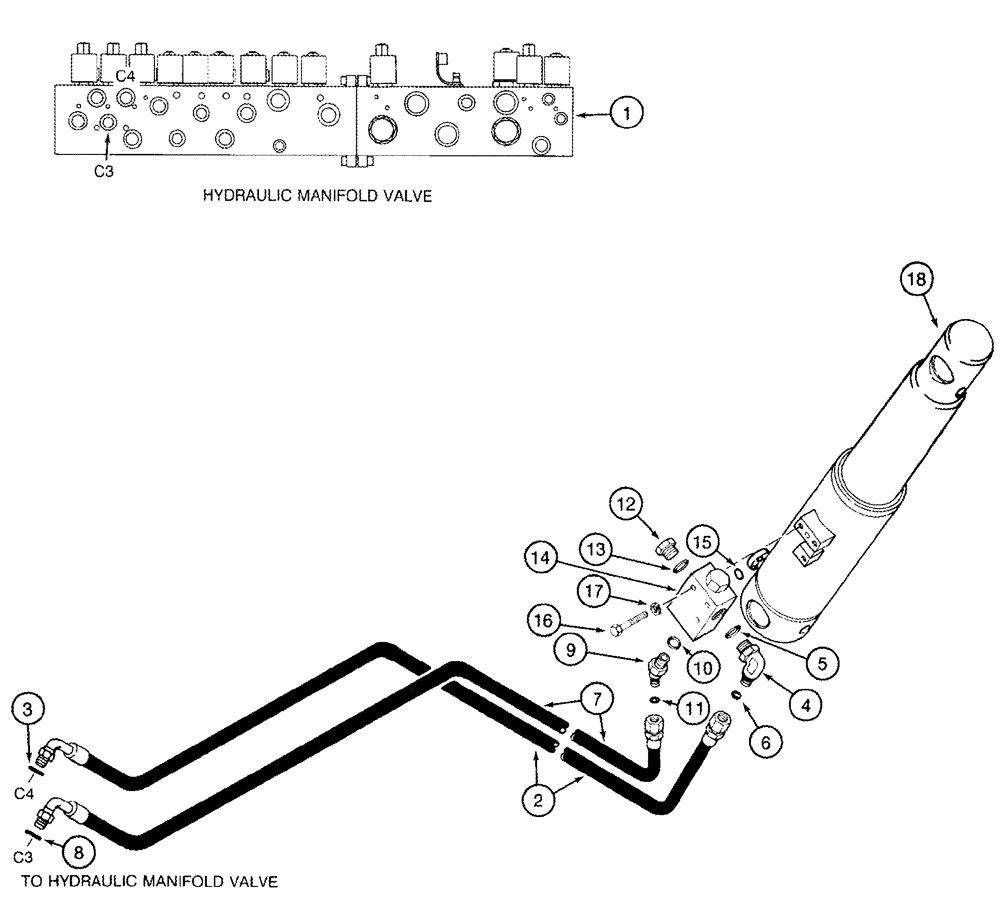

Запчасти Case IH CPX420 (08-13) - DRUM TILT SYSTEM - 5 ROW NARROW (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold

1шт.

See Figure(s) 08-17 - 08-20

1шт.

2

1988949C1

HOSE

1025 mm (40-3/8 in), Drum Tilt, Pressure

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 5, 6

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

1988950C1

HOSE

975 mm (38-3/8 in), Drum Tilt, Pilot

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/4 x 13/16, Inc. 10, 11

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

214389

PLUG,3/4" - 16 ORB

Includes Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

1346043C1

VALVE, CHECK

Pilot Operated

1шт.

See Figure 08-16

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

3шт.

17

492-11031

LOCK WASHER,5/16"

3шт.

18

107785A1

CYLINDER ASSY.

Drum Tilt, 102 ID x 185 mm strk, Serial Range: -Y6T011031

1шт.

See Figure 08-38

1шт.

18

87272664

CYLINDER ASSY.,88.9mm Rod, 184.6mm Stroke

Drum Tilt, Start Serial: Y6T011031

1шт.

See Figure 08-38A

1шт.
