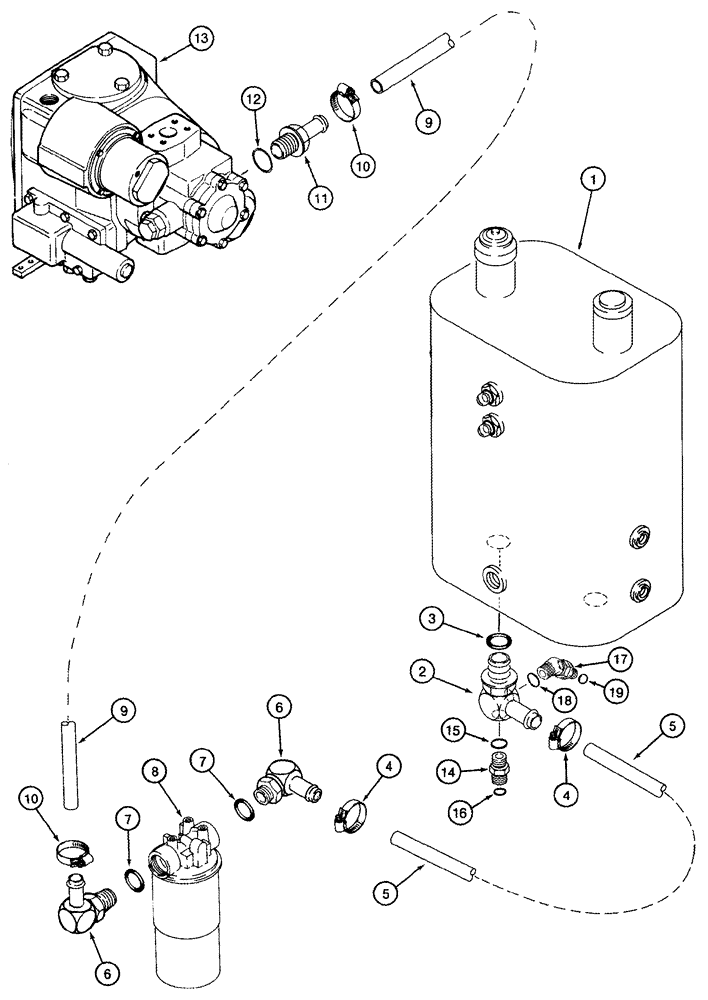

Запчасти Case IH CPX420 (08-02) - HYDROSTATIC PUMP HYDRAULIC SYSTEM - RESERVOIR TO PUMP (07) - HYDRAULICS

1

87348163

TANK, HYDRAULIC OIL

37.9 Liters (10 gal)

1шт.

See Figure 08-01

1шт.

2

198617A2

ELBOW

Special, Inc. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

5

184618A1

FLEXIBLE HOSE

305 mm (12-1/8 in), Cut From 1541953C1

1шт.

6

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 7

2шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

87784C92

HYDRAULIC OIL FILTER

1шт.

See Figure 08-03

1шт.

9

1988945C1

HOSE

525 mm (20-5/8 in)

1шт.

10

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

11

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP

1шт.

See Figure(s) 06-09 - 06-12

1шт.

13

1986824C5R

REMAN-HYDROSTAT PUMP

CPX420 CASE IH COTTON PICKER, HYDROSTATIC PUMP, RESERVOIR TO PUMP (5/05-8/06)

1шт.

13

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

14

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 15, 16

1шт.

See Figure 07-02, REF 35

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 18, 19

1шт.

See Figure 08-04, REF 31

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
