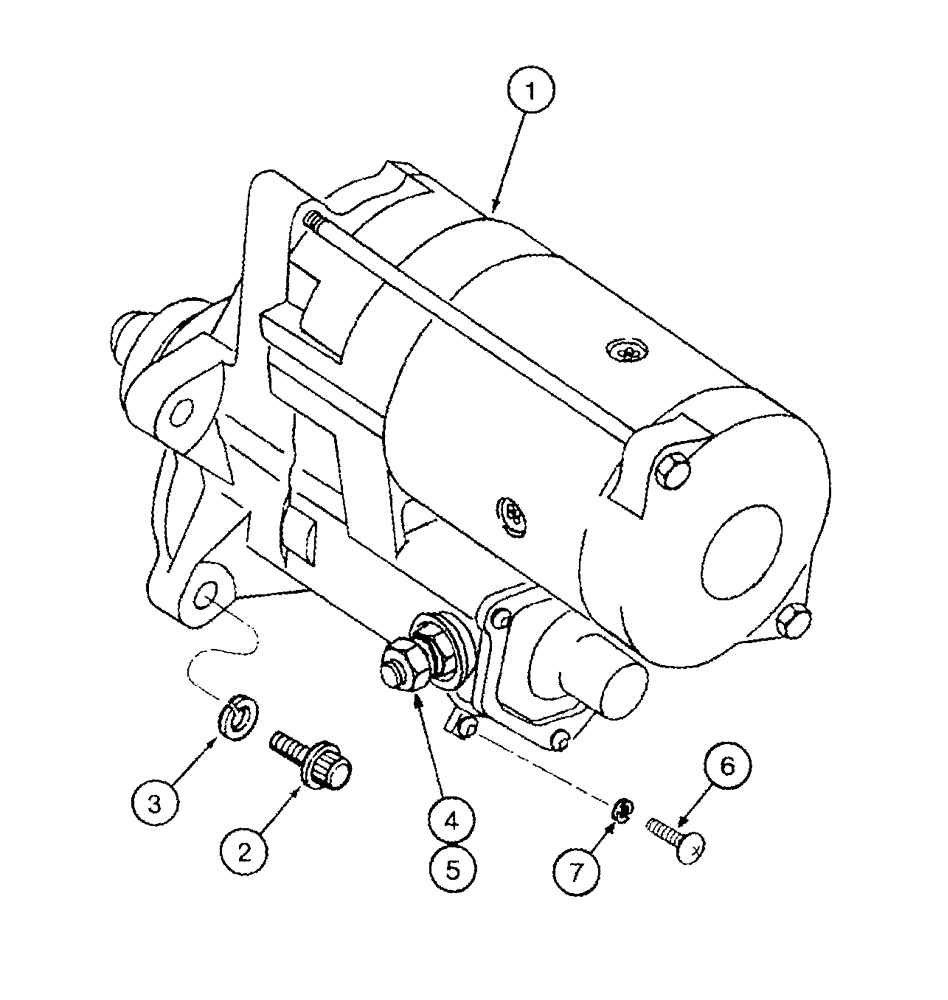

Запчасти Case IH CPX420 (04-18) - STARTER MOUNTING (06) - ELECTRICAL SYSTEMS

1

87413500

STARTING MOTOR

1шт.

See Figure 04-19

1шт.

1

87413500C

CORE-STARTER

1шт.

1

87413500R

REMAN-STARTER

1шт.

2

87016488

12 PT SCREW,M12 x 35mm, Cl 12.9

M12 x 35; 12.9

3шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

4

9706685

NUT,M12 x 1.75, Cl 8

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

892-11005

LOCK WASHER,M5

1шт.
