Запчасти Case IH CPX420 (04-11) - HARNESS - REAR (06) - ELECTRICAL SYSTEMS

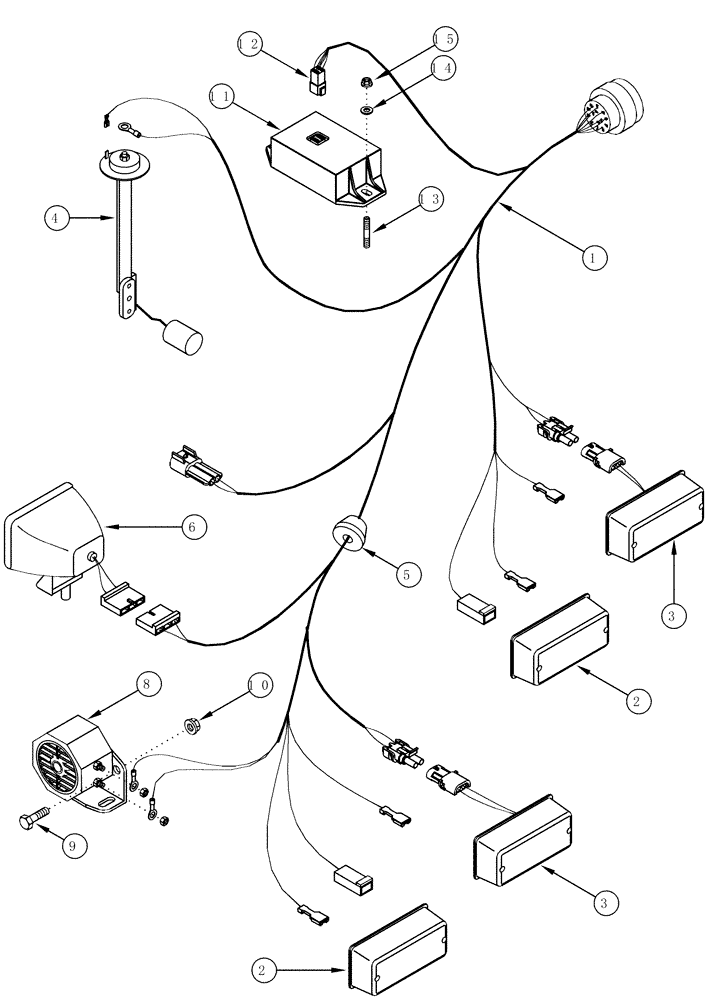

Схема запчастей Case IH CPX420 - (04-11) - HARNESS - REAR (06) - ELECTRICAL SYSTEMS
12
5
2
1
15
13
14
6
3
4
11
3
2
10
8
9

Артикул

Название

Примечание

Количество

1

396110A1

HARNESS

1шт.

2

92260C1

LAMP,12V, 27W, Red

Stop And Tail

2шт.

See Figure 04-24

1шт.

3

130882C91

LAMP

Rear

2шт.

4

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

5

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

2шт.

6

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Rear, Inc. 7

1шт.

See Figure 04-25

1шт.

7

139119A1

BULB,#886, 12V, 50W

Not Illustrated

1шт.

8

325258A1

ALARM

Backup Alarm and Basket Lower

1шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

2шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

86561136

MODULE

Flasher, North and South America Only

1шт.

12

396377A1

MULTIPOLE CONNECTOR,6 Pin

Australia Only

1шт.

13

NSS

NOT SOLD SEPARAT

STUD No. 10 x 5/8

2шт.

14

495-31022

WASHER,#10

2шт.

15

231-52409

FLANGE NUT,Flg, USR, #10-32

2шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm), Not Illustrated

13шт.

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

(9.5 mm) Not Illustrated

2шт.

515-23254

CLAMP,1", Insul, 3/8" Bolt

12 mm, Not Illustrated

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

Выбрано товаров: 21
