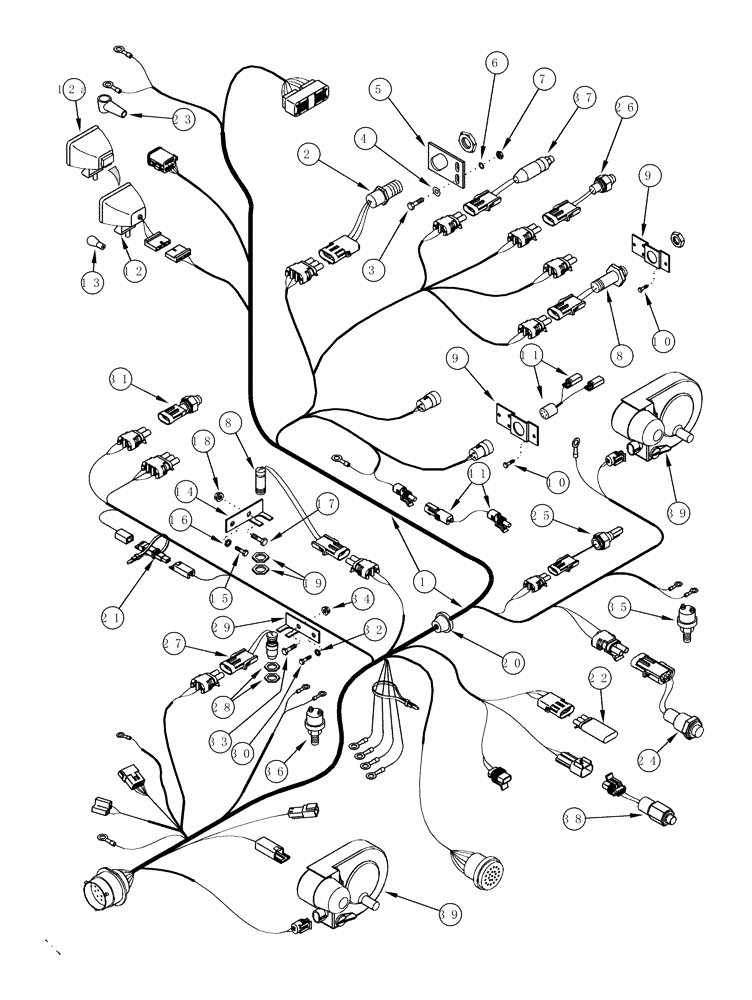

Запчасти Case IH CPX420 (04-10) - HARNESS - CHASSIS (06) - ELECTRICAL SYSTEMS

1

87430969

HARNESS

Chassis, Serial Range: -Y6T011001

1шт.

1

87391880

HARNESS

Chassis

1шт.

2

295528A1

SWITCH

Proximity, Drum Lift

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

495-11034

WASHER,5/16", SAE

2шт.

5

1546433C1

SUPPORT

Proximity Switch

1шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

7a

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

2шт.

8

245193C2

SENSOR

MPH, Fan RPM

2шт.

9

1988723C1

SUPPORT

Monitor

1-2шт.

10

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

3-6шт.

11

1983613C2

HARNESS

Drum

4-5шт.

12

185118A1

HEADLIGHT,12V, 37.5W

Drum, Inc. 13, If Used

1шт.

12a

284719A1

LAMP,Halogen, 12V, 50W, Clear

50W, If Used

1шт.

See Figure 04-25

1шт.

13

139119A1

BULB,#886, 12V, 50W

1шт.

14

1546124C1

SUPPORT

RPM Pickup

1шт.

15

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

1шт.

16

492-11062

BEARING WASHER,5/8"

1шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

18

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2; 8

1шт.

19

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

21

113699A1

RECTIFIER

2-5/8

1шт.

22

A187874

MODULE

Hydraulic Oil Level

1шт.

23

399470R1

BOOT

1шт.

24

L303189

SENSOR

Hydraulic Oil Temperature

1шт.

25

122428A1

SWITCH

Hydraulic Oil Level

1шт.

26

1983575C1

SWITCH

Transmission Neutral

1шт.

27

1252494C2

TRANSMITTER

Engine RPM

1шт.

28

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

29

1546124C1

SUPPORT

RPM Pickup

1шт.

30

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

1шт.

31

197514A2

SWITCH

Neutral Start

1шт.

32

492-11062

BEARING WASHER,5/8"

1шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

34

329-288

FLANGE NUT,Flg, 1/2"-13, G8

1шт.

35

141062A1

SENSOR

80 psi, Moisture Pressure

1шт.

36

1987419C1

PROBE

Bar Lube Pressure

1шт.

37

47532787

PRESSURE SWITCH

Parking Brake

1шт.

38

194407A2

SWITCH

Compactor/Auger Pressure

1шт.

39

127813A1

LAMP

Service, Inc. 40

2шт.

40

H40556

BULB

Not Illustrated

1шт.

41

136058A1

HARNESS

Extension, Turn Signal, 5 Row Wide

1шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm)

7шт.

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

(38.1 mm)

2шт.

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

(47.6 mm)

5шт.

515-23254

CLAMP,1", Insul, 3/8" Bolt

(25.4 mm)

1шт.

299269C91

CLAMP

1шт.

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

9.5 mm

3шт.

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

12.7 mm

1шт.

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

(12.7 mm)

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
