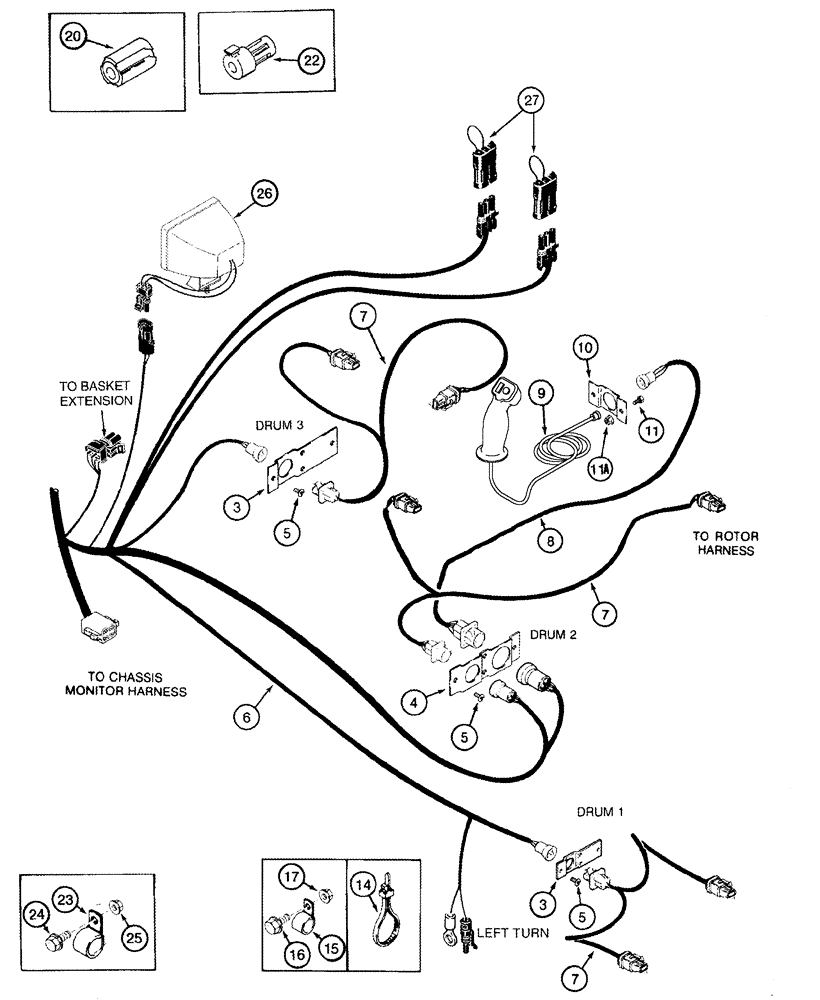

Запчасти Case IH CPX420 (04-09) - HARNESS, LEFT HAND TOOL BAR - 4 ROW WIDE (06) - ELECTRICAL SYSTEMS

3

1988723C1

SUPPORT

Harness Mounting, One Connector

4шт.

4

1988724C1

SUPPORT

Harness Mounting, Two Connector

1шт.

5

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

5шт.

6

87430969

HARNESS

Chassis, Serial Range: -Y6T011001

1шт.

6

87391880

HARNESS

Chassis, Start Serial: Y6T011001

1шт.

7

1983613C2

HARNESS

Drum

4шт.

8

87454224

HARNESS

Drum Tether

1шт.

9

87408867

SWITCH

Remote Tether

1шт.

10

91795C1

SUPPORT

Harness Mounting, One Connector

1шт.

11

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

2шт.

12

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

20

87449805

RESISTOR

Monitor Conversion

1шт.

22

106209A1

CONNECTOR, ELEC

CONNECTOR Dust

2шт.

23

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

Rubber Cushioned

1шт.

24

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

25

231-5146

FLANGE NUT,3/8"-16

1шт.

26

284719A1

LAMP,Halogen, 12V, 50W, Clear

50W, Conveyor

1шт.

See Figure 04-25

1шт.

27

294785A1

CONNECTOR, ELEC

CONNECTOR Used With Tiltback Removed

2шт.
