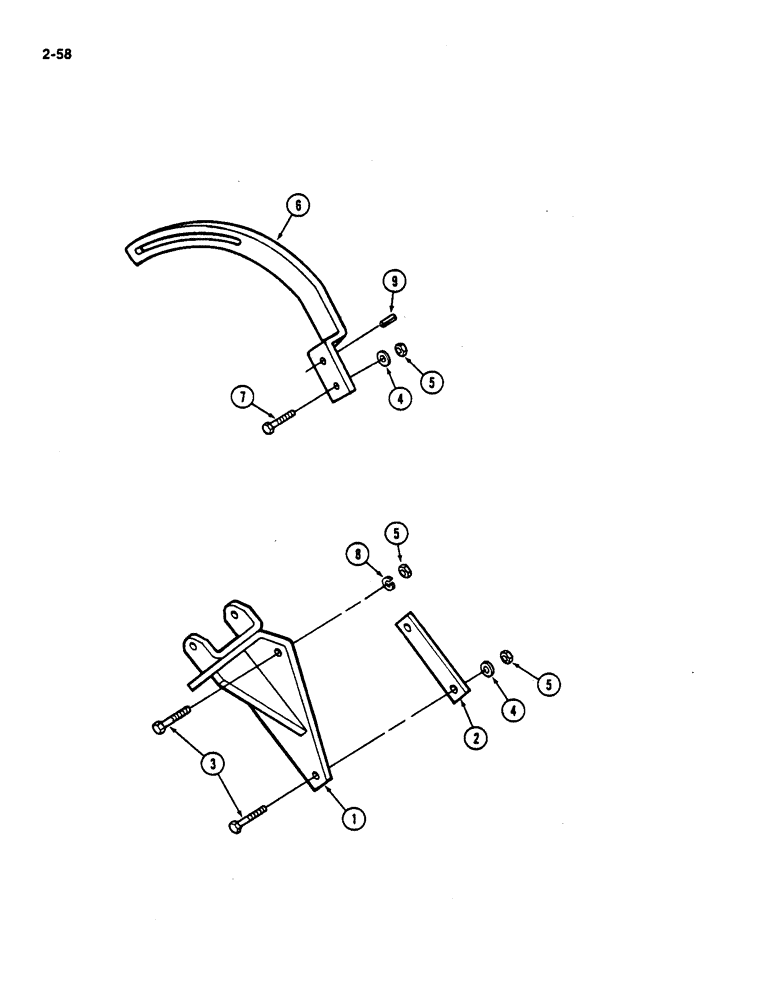

Запчасти Case IH 782 (2-58) - ALTERNATOR BRACKET AND BRACE, D358 DIESEL ENGINE (01) - ENGINE

1

3218048R2

SUPPORT

BRACKET ASSEMBLY - alternator

1шт.

2

3144970R1

PLATE

- distance

1шт.

3

179830

3шт.

4

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened, 5/16 inch

6шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

4шт.

6

1329027C1

SUPPORT

BRACE - alternator

1шт.

7

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

717547R1

LOCK PIN,M16 x 18, Slotted

PIN - slotted spring, 16 x 18 mm

1шт.
