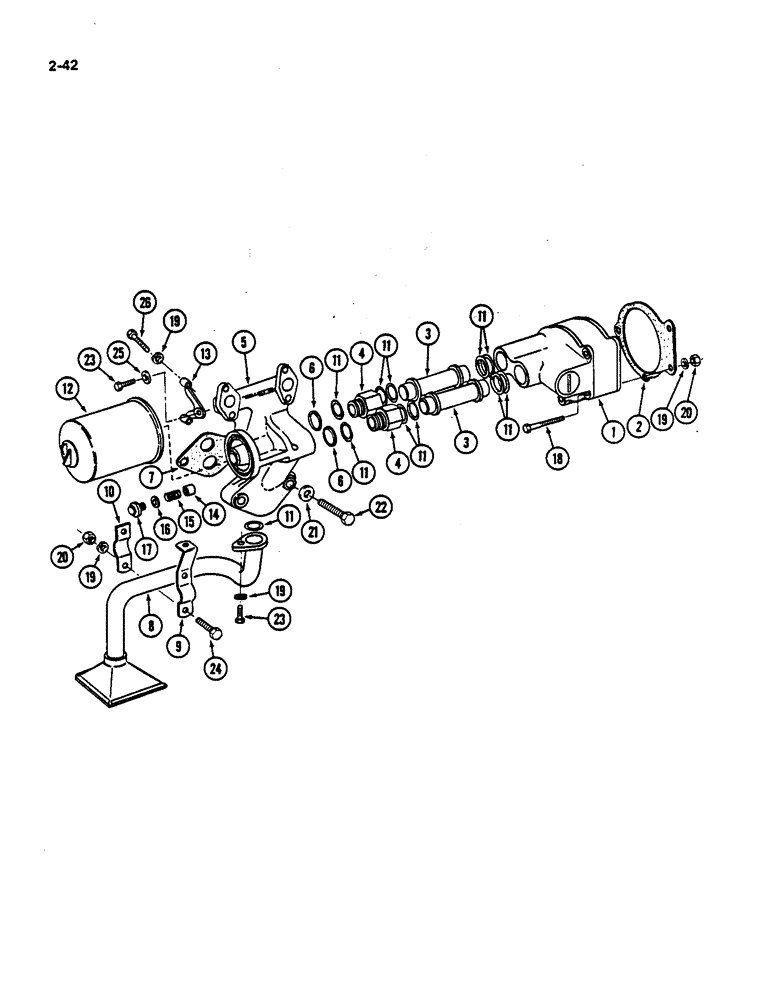

Запчасти Case IH 782 (2-42) - OIL PUMP, PIPING AND OIL FILTER, D358 DIESEL ENGINE (01) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - oil (See Page 2-45)

1шт.

2

3055961R1

GASKET

- oil pump

1шт.

3

3055950R1

CONNECTION

PIPE ASSEMBLY - oil, Serial Range: pump-filter

2шт.

4

3055949R2

ADAPTER

CONNECTOR - oil pump pipe

2шт.

5

3136384R2

PEDESTAL

BASE - oil filter

1шт.

6

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Packing M26 x 31 x 2

2шт.

7

3055237R1

GASKET

- oil filter base

1шт.

8

3132793R92

LINE

PIPE ASSEMBLY - oil suction

1шт.

9

3055946R2

BRACKET

- oil suction pipe

1шт.

10

3055945R1

CLAMP

- oil suction pipe

1шт.

11

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

11шт.

12

1329020C1

FILTER, ENGINE OIL

FILTER - oil

1шт.

13

3136385R1

SUPPORT

- oil filter base

1шт.

14

251400R1

VALVE

- oil cooler relief

1шт.

15

279163R1

SPRING

- oil cooler relief valve

1шт.

16

3058431R1

COPPER WASHER

GASKET - relief valve plug

1шт.

17

3138581R1

PLUG

- relief valve

1шт.

18

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

4шт.

19

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch Nc

6шт.

21

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

22

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

23

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

25

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Truncated cone M8.2 ID x 16 OD x .9 Thk

1шт.

26

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.
