Запчасти Case IH 782 (2-36) - CYLINDER BLOCK AND RELATED PARTS, D358 DIESEL ENGINE (01) - ENGINE

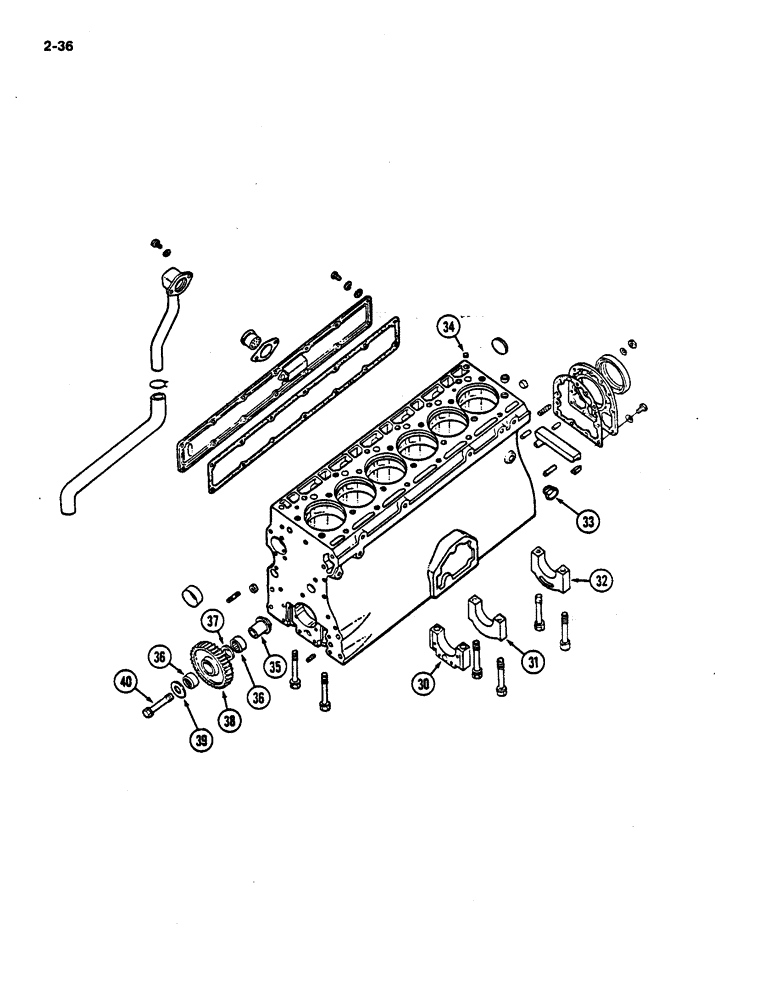

Схема запчастей Case IH 782 - (2-36) - CYLINDER BLOCK AND RELATED PARTS, D358 DIESEL ENGINE (01) - ENGINE
30
36
36
33
34
35
38
37
39
31
40
32

Артикул

Название

Примечание

Количество

30

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, front (Order cylinder block 3136194R96) (Continued from Page 2-35)

1шт.

31

3144442R91

BEARING ASSY

PCKAGE - crankshaft bearing cap, center

1шт.

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, center (Reference No. 3144443R1)

1шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Crankshaft bearing cap

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - installing (Reference No. 1090851R1)

1шт.

31

3144438R91

BEARING ASSY

PACKAGE - crankshaft bearing cap, intermediate

4шт.

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, intermediate (Reference No. 3144439R1)

1шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Crankshaft bearing cap

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - installing (Reference No. 1090851R1)

1шт.

32

3144436R91

CRANKSHAFT BEARING

PACKAGE - crankshaft bearing cap, rear

1шт.

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing, rear (Reference No. 3144437R1)

1шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Crankshaft bearing cap

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - installing (Reference No. 1090851R1)

1шт.

33

20990R1

PLUG

- hex pipe, 3/8-18

1шт.

34

3136004R1

COVER

- closing, 10 mm

1шт.

35

3055373R1

CARRIER

- idler gear

1шт.

36

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER - needle

2шт.

37

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - distance

1шт.

38

3055043R3

PINION

GEAR - idler

1шт.

39

3055372R1

DISC

RING - anti-wear idler gear

1шт.

40

3055374R1

BOLT

- idler gear carrier

1шт.

Выбрано товаров: 21
