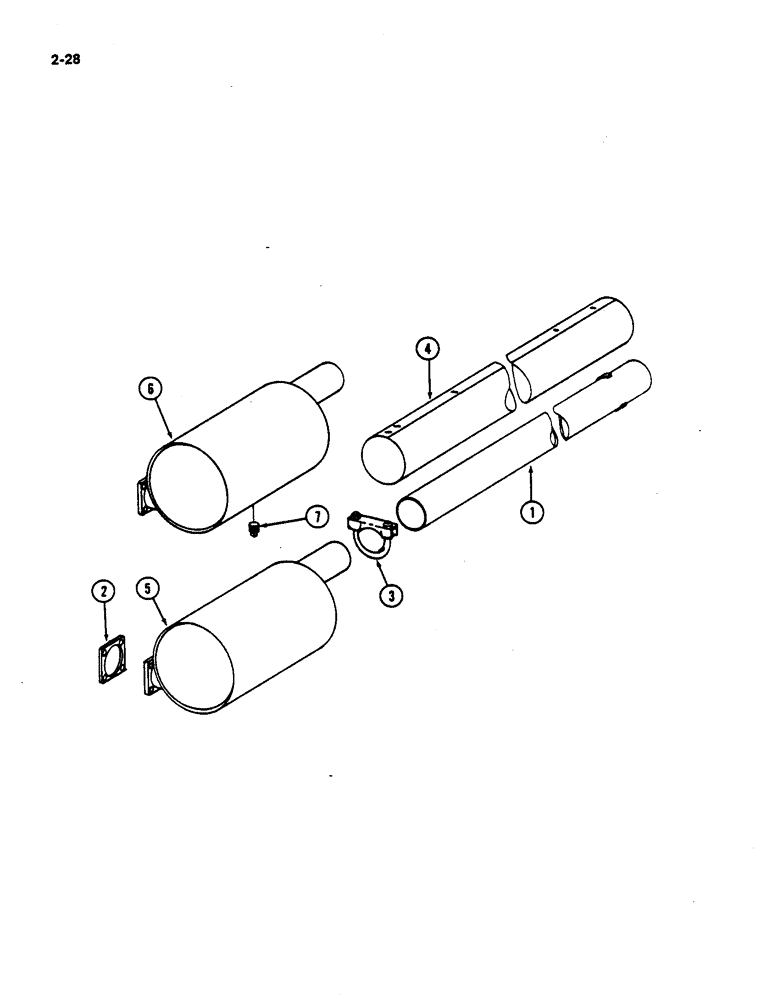

Запчасти Case IH 782 (2-28) - EXHAUST SYSTEM, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER (01) - ENGINE

1

222307C1

EXHAUST SYSTEM PIPE

TUBE - exhaust pipe

1шт.

120369

NUT,3/8"-24, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

673331R2

SHIM

GASKET - exhaust muffler

1шт.

3

549906C91

CLAMP

- exhaust

1шт.

4

214825C2

TUBE

- exhaust shield

1шт.

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 4/8 x 8.3 mm

7шт.

5

221951C1

MUFFLER

- exhaust

1шт.

6

221952C1

MUFFLER

- spark arrester

1шт.

7

444590

PLUG

- square head automotive pipe, 1/2-14 inch thread

1шт.

165900C1

ANGLE

CLIP - wheel brake

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
