Запчасти Case IH 782 (9-436) - DECAL KIT, IH BUILT MACHINES (09) - CHASSIS ATTACHMENTS

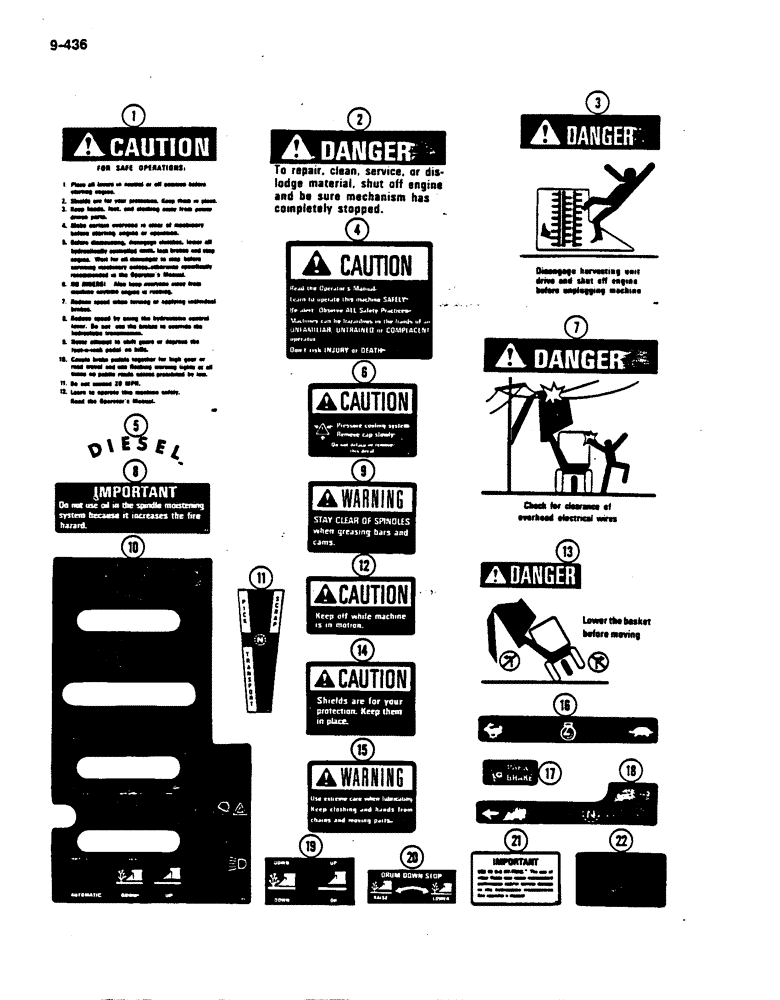

Схема запчастей Case IH 782 - (9-436) - DECAL KIT, IH BUILT MACHINES (09) - CHASSIS ATTACHMENTS
7
6
3
16
1
15
19
21
17
12
9
11
10
13
4
18
5
8
14
20
2
22

Артикул

Название

Примечание

Количество

204840C96

KIT

- decal service

1шт.

1

2753929R5

DECAL

- caution, general instructions

1шт.

2

210600C1

DECAL

- danger, shut off engine

2шт.

3

1285447C2

DECAL

- danger, disengage

2шт.

4

61907C1

DECAL

- caution, read manual

1шт.

5

2753934R1

PRODUCT GRAPHIC

DECAL - diesel

1шт.

Not Serviced Separately - Order Kit

1шт.

6

204166C1

DECAL

- warning

1шт.

7

1324308C1

PRODUCT GRAPHIC

DECAL - danger, electrical wires

1шт.

8

202499C1

DECAL

- warning, water tank

1шт.

9

216346C2

DECAL

- warning, spindles

2шт.

10

1260207C1

DECAL

- console

1шт.

Not Serviced Separately - Order Kit

1шт.

11

215851C2

DECAL

- shift pattern

1шт.

Not Serviced Separately - Order Kit

1шт.

12

2754442R1

PRODUCT GRAPHIC

DECAL - caution, keep off

2шт.

13

1324309C1

PRODUCT GRAPHIC

DECAL - danger, moving instructions

1шт.

14

56630C1

PRODUCT GRAPHIC

DECAL - caution, shields

2шт.

15

216251C2

DECAL

- warning, lubrication

2шт.

16

222891C2

DECAL

- speed control

1шт.

Not Serviced Separately - Order Kit

1шт.

17

215858C3

DECAL

- park brake

1шт.

Not Serviced Separately - Order Kit

1шт.

18

215844C2

DECAL

- propulsion control

1шт.

Not Serviced Separately - Order Kit

1шт.

19

215845C1

DECAL

- unit position

1шт.

Not Serviced Separately - Order Kit

1шт.

20

215849C1

DECAL

- drum down stop

1шт.

Not Serviced Separately - Order Kit

1шт.

21

113750C1

PRODUCT GRAPHIC

DECAL - hy-tran

1шт.

Not Serviced Separately - Order Kit

1шт.

22

2752917R2

DECAL

- hydraulic filter

1шт.

Not Serviced Separately - Order Kit

1шт.

Выбрано товаров: 33
