(2-20) - AIR CLEANER ASSEMBLY LOW DRUM P.I.N. 682 & AFTER HIGH DRUM P.I.N. 2125 & AFTER

Запчасти Case IH 782 (2-20) - AIR CLEANER ASSEMBLY LOW DRUM P.I.N. 682 & AFTER HIGH DRUM P.I.N. 2125 & AFTER (01) - ENGINE

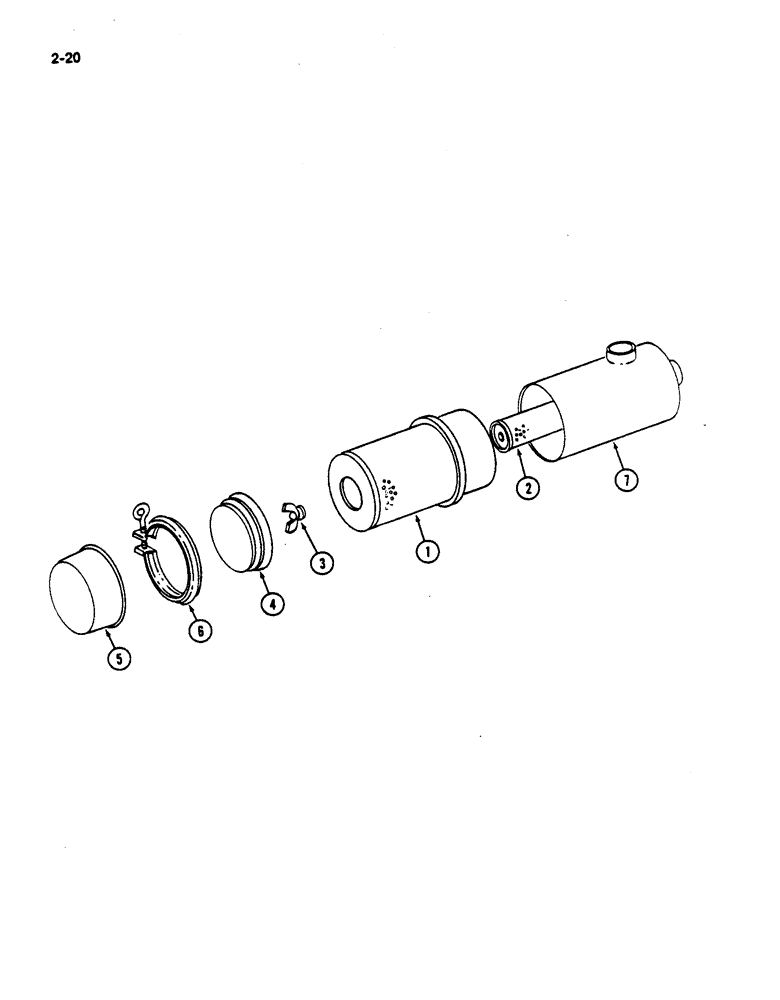

Схема запчастей Case IH 782 - (2-20) - AIR CLEANER ASSEMBLY LOW DRUM P.I.N. 682 & AFTER HIGH DRUM P.I.N. 2125 & AFTER (01) - ENGINE
5
6
4
3
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

146456C91

CLEANER ASSY.

CLEANER ASSEMBLY - dry type air

1шт.

1

690049C2

AIR CLEANER

ELEMENT - primary

1шт.

2

529852R5

AIR FILTER

ELEMENT - secondary

1шт.

3

381342R2

NUT ASSY.

NUT

1шт.

4

404193R1

BAFFLE

1шт.

5

404194R1

COVER

CUP

1шт.

6

130879HB

CLAMP

ASSEMBLY - cup

1шт.

7

NSS

NOT SOLD SEPARAT

BODY (Order air cleaner assembly)

1шт.
