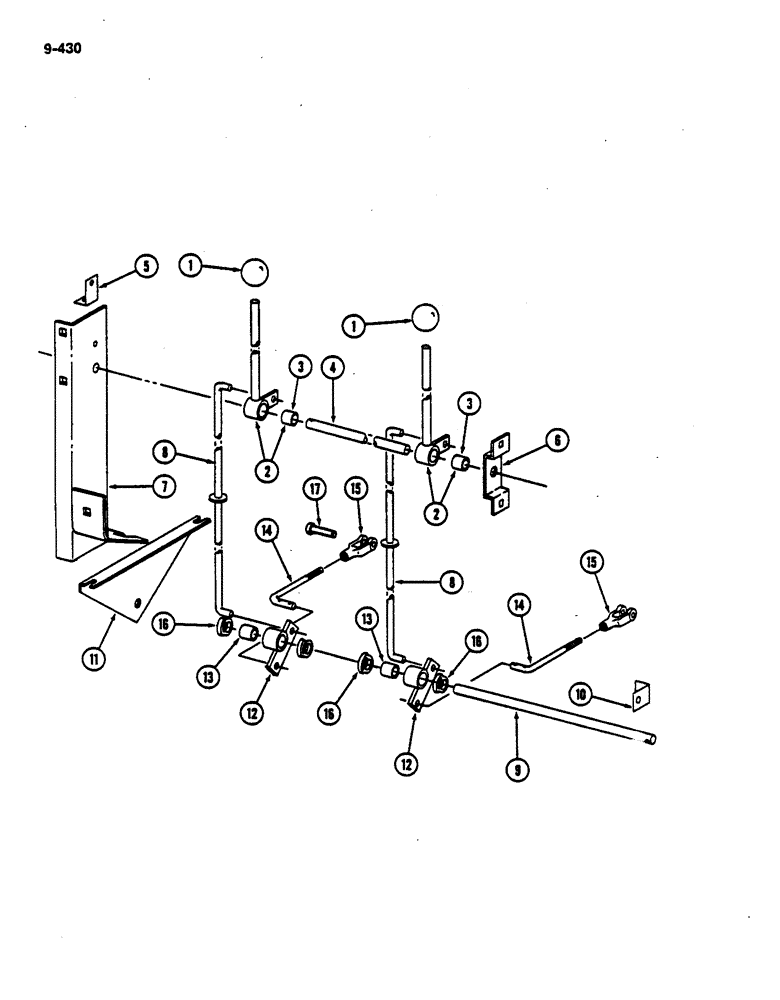

Запчасти Case IH 782 (9-430) - DRUM LIFT CONTROLS (09) - CHASSIS ATTACHMENTS

1

198956C1

KNOB

- drum valve lever

2шт.

2

209919C91

LEVER

ASSEMBLY - drum valve

2шт.

3

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- lever hub

1шт.

4

210186C1

ROD

- pivot controls

1шт.

5

165900C1

ANGLE

CLIP - shaft retainer

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

6

210187C1

SUPPORT

- control shaft pivot

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - round head square neck, 5/16 NC x 1/2 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

215869C1

SUPPORT

- cable anchor

1шт.

186R3R1

BOLT - round head square neck, 5/16 NC x 1/2 inch

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

8

215262C1

ROD - upper

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

9

214616C1

ROD

- control rockshaft pivot

1шт.

10

165900C1

ANGLE

CLIP - pivot shaft

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2 mm)

1шт.

11

214618C1

SUPPORT

- controls rockshaft

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

12

214636C91

LEVER

ASSEMBLY - valve rockshaft

2шт.

13

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

14

215250C1

ROD

- drum height valve

2шт.

121224

SUPPORT

3/32" x 1"

4шт.

15

215895C1

YOKE

- drum height rod

2шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/16 x 1-1/2 inch

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

1322910C1

CLAMP

- hose

4шт.

17

20286R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 3/16 x 1-1/32 inch

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.
