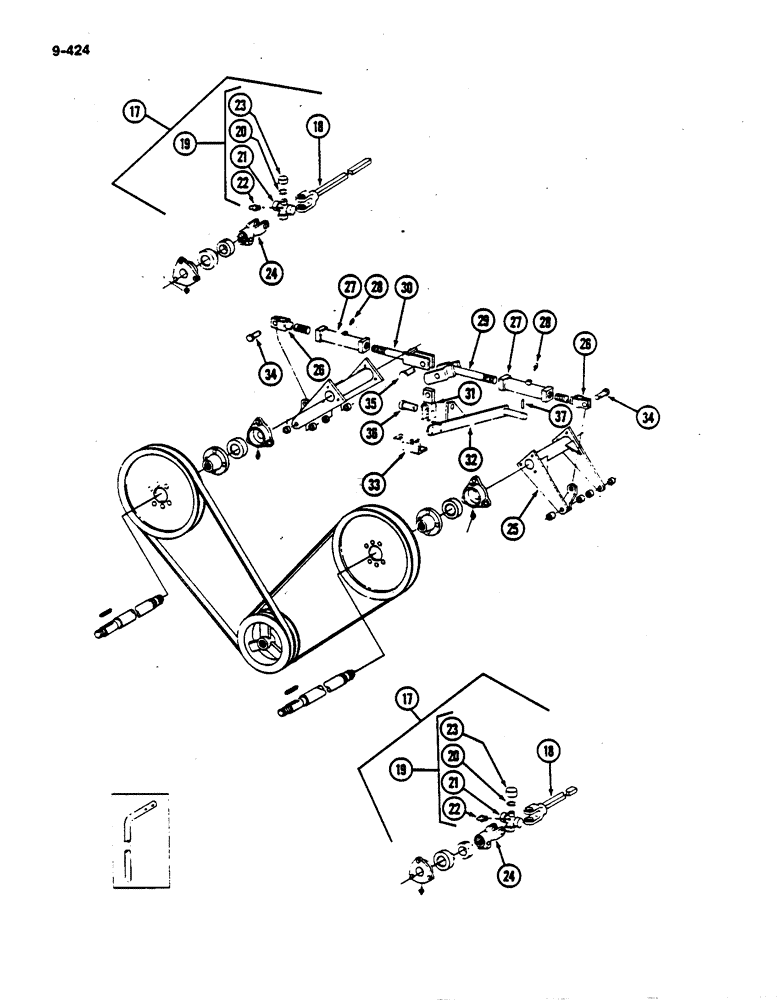

Запчасти Case IH 782 (9-424) - AUXILIARY DRUM DRIVE (09) - CHASSIS ATTACHMENTS

17

214513C91

JOINT

ASSEMBLY - drum drive male (Continued from Page 9-423)

2шт.

18

673152R91

SHAFT

YOKE AND SHAFT

1шт.

19

669564R91

CROSS

KIT - cross service

1шт.

20

661657R1

RING

- snap

4шт.

21

NSS

NOT SOLD SEPARAT

CROSS - center (Order kit 669564R91)

1шт.

22

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITING - 65 degree angle grease, 1/8 inch PTF

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - needle (Order kit 669564R91)

4шт.

24

214514C1

YOKE

- splined

1шт.

25

210168C3

BRACKET

- drum drive support right

1шт.

26

1263046C1

FORK

YOKE - drum drive (Replaces 210177C1)

2шт.

280954

NUT,3/4"-10, G5

2шт.

27

666177R1

TURNBUCKLE

- drum drive clevis

2шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

29

666178R92

CLEVIS

- drum drive

1шт.

30

666181R92

CLEVIS

YOKE - drum drive stop

1шт.

31

210173C1

YOKE - drum drive pivot

1шт.

32

210179C2

LEVER - drum engaging

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

33

210192C1

SUPPORT - drum link stop

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

125698

CLIP

- hydraulic line

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

34

P028730

PIN - headed, 3/4 x 1-7/8 inch

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

35

20243R1

CLEVIS PIN,3/4" x 2.672"

PIN - clevis, 3/4 x 2.672 inch

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

36

25081R1

PIN - clevis, 3/4 x 1-13/16 inch

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

37

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

1269978C91

PACKAGE

KIT - drum drive pivot service

1шт.

NSS

NOT SOLD SEPARAT

BAR

4шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 inch

4шт.

210167C1

SPACER

(With attaching parts)

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
