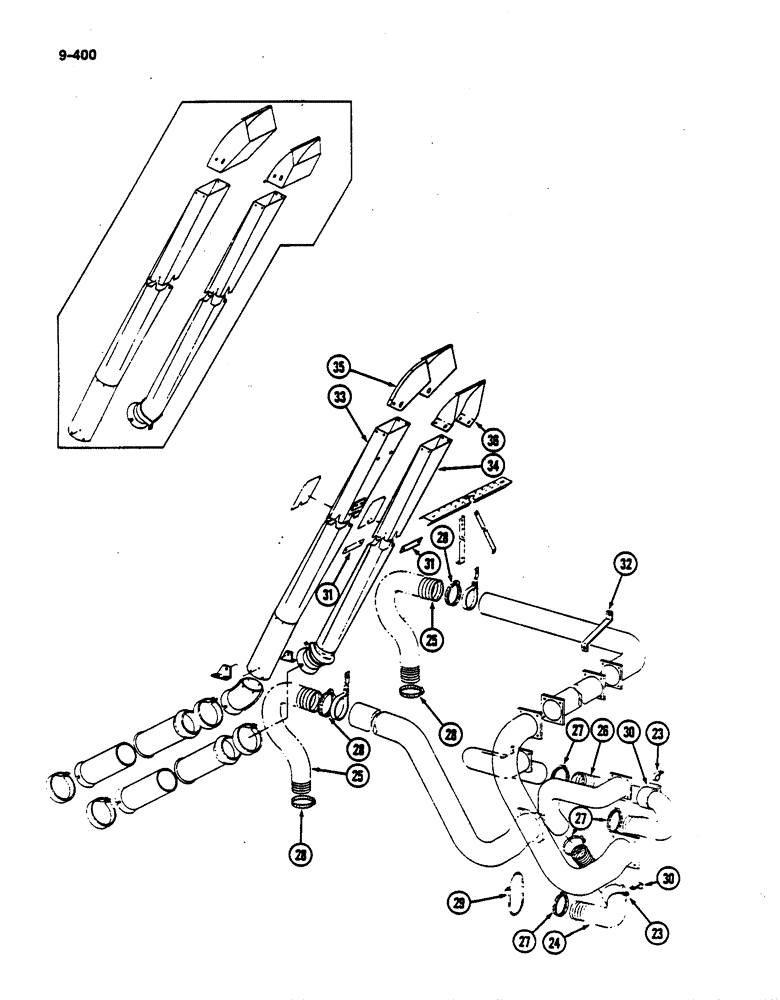

Запчасти Case IH 782 (9-400) - CONVEYOR (09) - CHASSIS ATTACHMENTS

23

215011C1

CLAMP

- rear door hose (Continued from Page 9-399)

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

- hex, 5/16 NC x 1-1/4 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

24

215074C2

HOSE,101.60 mm ID x 1524.00 mm

- Rear left 101.60 mm ID x 1524.00 mm

1шт.

25

215075C2

HOSE,127.00 mm ID x 1371.50 mm

- Front, High drum 127.00 mm ID x 1371.50 mm

2шт.

25

215957C2

HOSE,127.00 mm ID x 1625.50 mm

- Front, Low drum 127.00 mm ID x 1625.50 mm

2шт.

26

215076C2

HOSE,101.60 mm ID x 1829.00 mm

- Rear right 101.60 mm ID x 1829.00 mm

1шт.

27

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP - No. 64 hose

4шт.

28

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - No. 80 hose

4шт.

29

216427C1

STRAP

- tie

3шт.

30

299615C1

CLAMP

- 5/8 tube

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1mm)

2шт.

31

214862C1

BAR

- cover

4шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

588322R2

CLAMP - No. 116 hose

16шт.

32

214921C1

SUPPORT

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1mm)

1шт.

33

1278191C1

CHUTE ASSY.

CHUTE - outer (Low drum P.I.N. 839 and after) (High drum P.I.N. 4232 and after)

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

1278139C1

CHUTE ASSY.

CHUTE - inner left

1шт.

34

1278140C1

CHUTE ASSY.

CHUTE - inner right (Low drum P.I.N. 839 and after) (High drum P.I.N. 4232 and after)

2шт.

35

1278136C2

CHUTE (DOWNWARD)

CHUTE - distributor hood (Low drum P.I.N. 839 and after) (High drum P.I.N. 4232 and after)

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1mm)

8шт.

36

1278137C2

CHUTE (DOWNWARD)

CHUTE - distributor hood left

1шт.

36

1278138C2

CHUTE (DOWNWARD)

CHUTE - distributor hood right (Low drum P.I.N. 839 and after) (High drum P.I.N. 4232 and after)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

120376

NUT,5/16"-18, G5

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1mm)

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.
