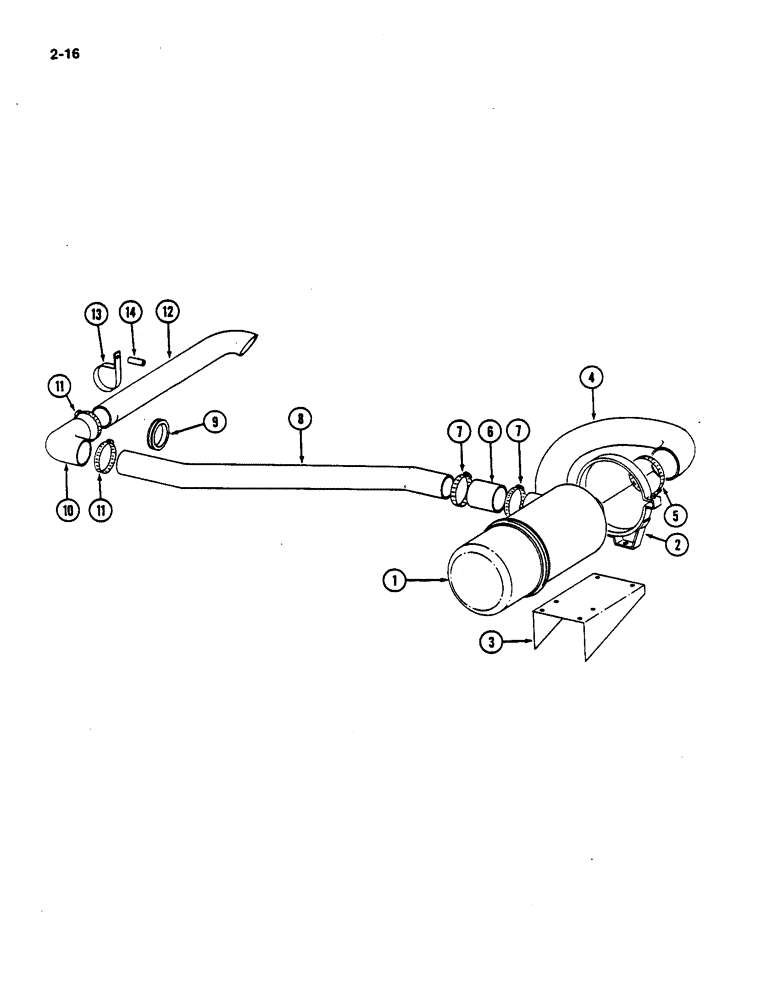

Запчасти Case IH 782 (2-16) - AIR CLEANER & CONNECTIONS LOW DRUM P.I.N. 682 & AFTER HIGH DRUM P.I.N. 2125 & AFTER (01) - ENGINE

1

146456C91

CLEANER ASSY.

CLEANER ASSEMBLY - dry type air (See Page 2-21)

1шт.

2

603697C91

CLAMP

BAND - mounting

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

216404C1

SUPPORT

- air cleaner

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

222298C1

INTAKE AIR HOSE,75.00 mm ID

- Elbow 75.00 mm ID

1шт.

5

146569C1

CLAMP

- hose (Replaces 397257R1)

2шт.

6

222302C1

HOSE

- air cleaner

1шт.

7

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP - hose

2шт.

8

222301C1

AIR INTAKE TUBE

TUBE - air intake

1шт.

9

222300C1

GROMMET

- pipe

1шт.

10

222305C1

HOSE,94.0 mm ID

- elbow

1шт.

11

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP - hose

2шт.

12

222304C1

TUBE

- air inlet

1шт.

13

222303C1

CLAMP

- pipe

1шт.

14

65881H

SPACER,1/4" Pipe x 1 1/4"

- pipe, 1/4 x 1-1/4 inch long

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
