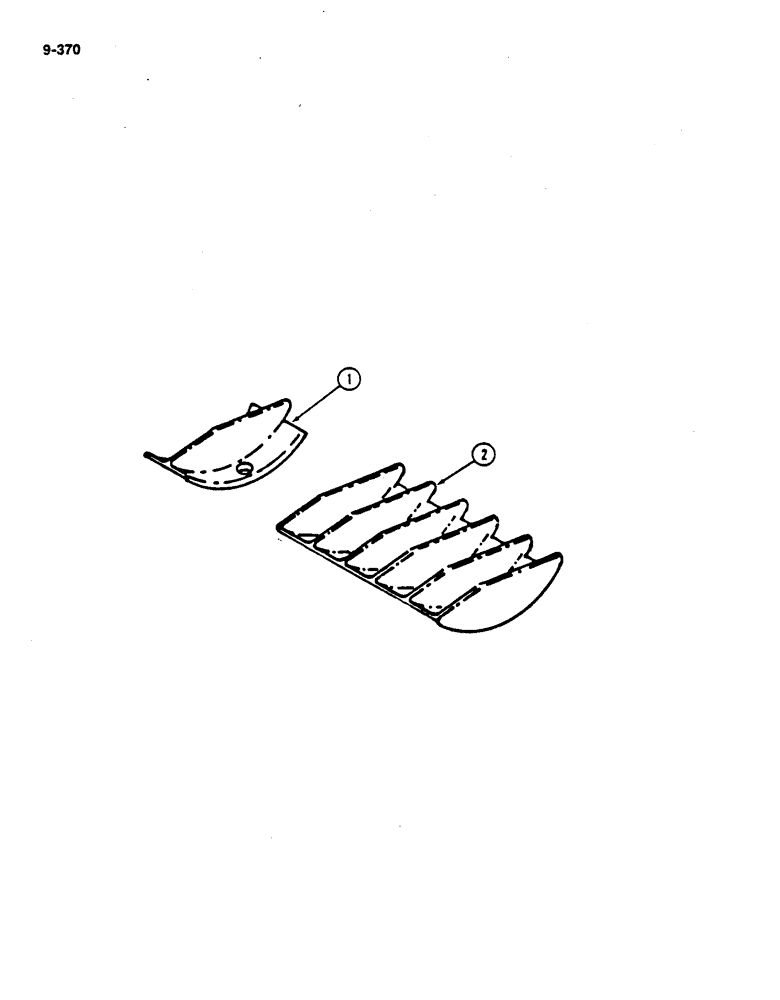

Запчасти Case IH 782 (9-370) - ALUMINUM DEEP RIB COMPRESSOR PLATES - HIGH DRUM (09) - CHASSIS ATTACHMENTS

669581R91

PLATE ASSEMBLY - aluminum deep rib compressor

1шт.

1

669577R1

GUIDE

PLATE - compressor rib short

2шт.

474-12510

SCREW,FLAT, 1/4" - 28 x 5/8"

- fillister head slotted, 1/4 NF x 5/8 inch

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

- hex, 1/4 inch NF

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

669576R1

LARGE PLATE

PLATE - compressor rib long

6шт.
