(9-368) - ALUMINUM DEEP RIB COMPRESSOR PLATES - LOW DRUM

Запчасти Case IH 782 (9-368) - ALUMINUM DEEP RIB COMPRESSOR PLATES - LOW DRUM (09) - CHASSIS ATTACHMENTS

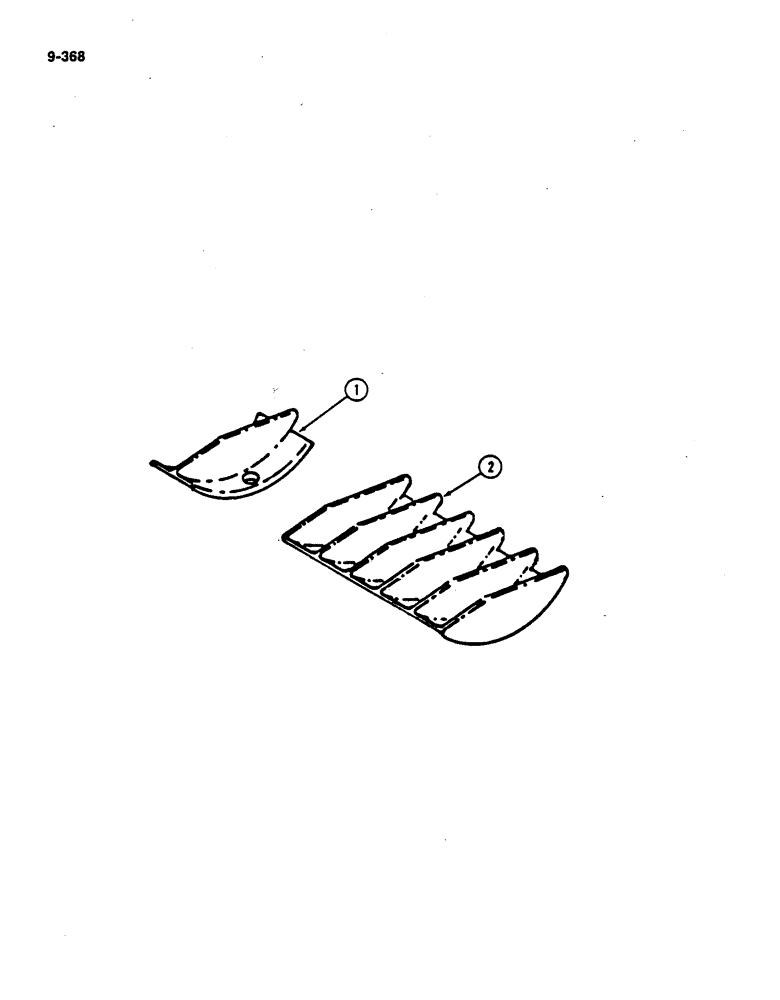

Схема запчастей Case IH 782 - (9-368) - ALUMINUM DEEP RIB COMPRESSOR PLATES - LOW DRUM (09) - CHASSIS ATTACHMENTS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

669580R91

PLATE

ASSEMBLY - aluminum deep rib compressor

1шт.

1

669577R1

GUIDE

PLATE - compressor rib short

2шт.

216302

HYDRAULIC PUMP

- fillister head slotted, 1/4 NF x 5/8 inch

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

- hex, 1/4 inch NF

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

669576R1

LARGE PLATE

PLATE - compressor rib long

4шт.
