(9-364) - ALUMINUM RIB COMPRESSOR PLATES - LOW DRUM

Запчасти Case IH 782 (9-364) - ALUMINUM RIB COMPRESSOR PLATES - LOW DRUM (09) - CHASSIS ATTACHMENTS

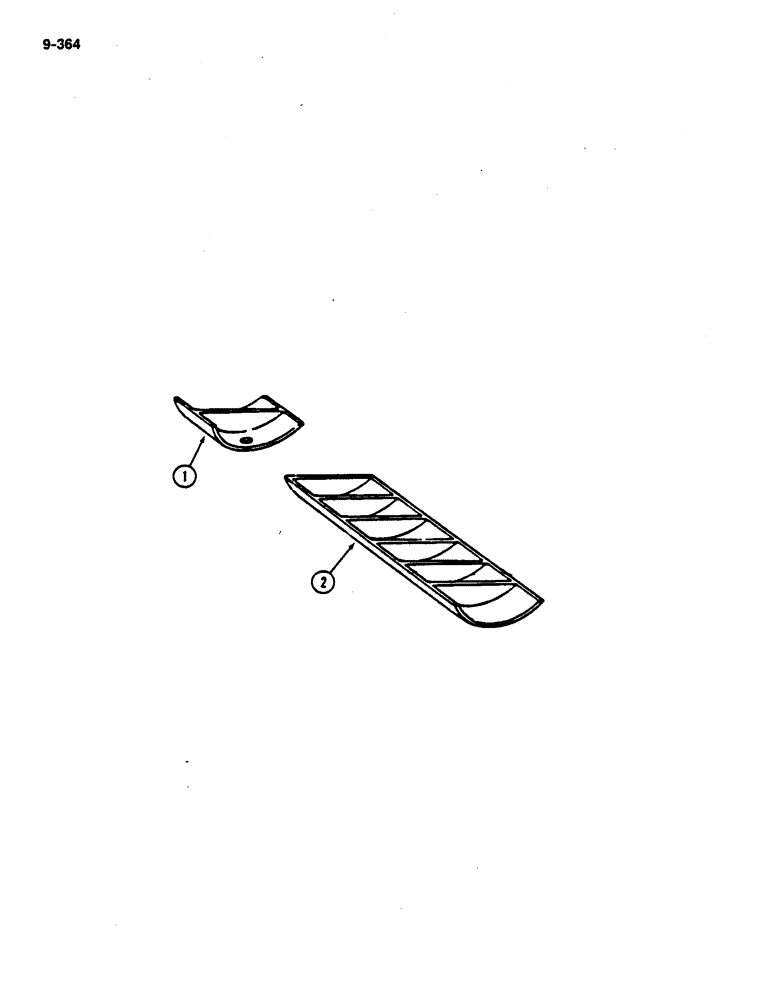

Схема запчастей Case IH 782 - (9-364) - ALUMINUM RIB COMPRESSOR PLATES - LOW DRUM (09) - CHASSIS ATTACHMENTS
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

667406R91

PLATE ASSEMBLY - aluminum rib compressor

2шт.

1

667387R91

PLATE - front compressor rib short

2шт.

216302

HYDRAULIC PUMP

- fillister head slotted, 1/4 NF x 5/8 inch

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

- hex, 1/4 inch NF

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

667386R1

LARGE PLATE

PLATE - front compressor rib long

4шт.
