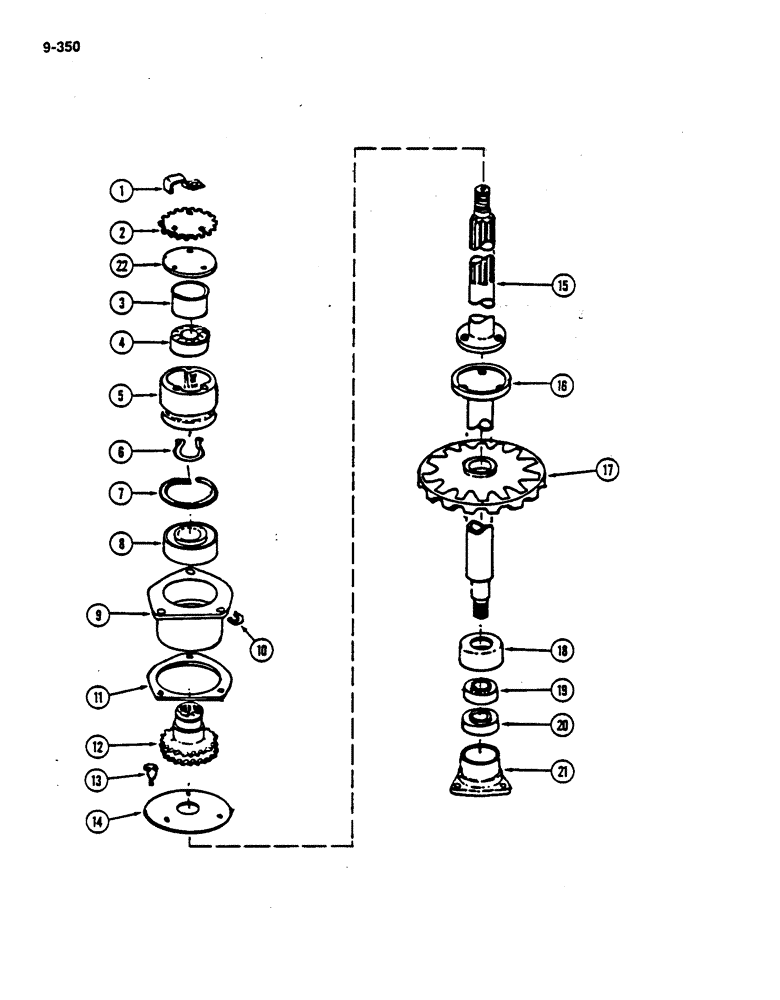

Запчасти Case IH 782 (9-350) - DOFFER (09) - CHASSIS ATTACHMENTS

1

668820R1

LOCK

- adjusting screw cap

4шт.

2

10079R

COVER

CAP - Doffer adjusting screw

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

3

10078R

SPACER

- adjusting screw bearing

4шт.

4

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING - Doffer drive shaft upper

4шт.

5

7RA

ADJUSTMENT SCREW,3 1/4" - 12 x 2", Gr 25

- Doffer adjusting

4шт.

6

69339R1

SNAP RING,#150, Ext

Ring, Snap, , bearing #150, Ext

4шт.

7

49137D

RING, SNAP

RING - bearing retainer large snap

4шт.

8

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

- Doffer drive shaft

4шт.

9

668822R1

BEARING HOUSING

CAGE - Doffer drive shaft bearing

4шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

10

670363R1

SHIM

- upper Doffer bearing

1шт.

11

669829R1

PLATE

- Doffer reinforcing support

4шт.

12

668821R1

DRIVE SPROCKET

SPROCKET - Doffer drive

4шт.

13

667573R1

CLIP

- Doffer dust seal retainer

4шт.

14

660638R1

FELT

SEAL - Doffer shaft dust felt

4шт.

15

668823R1

SHAFT

- Doffer drive

4шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

- hex, 3/8 NF x 7/8 inch

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

4шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

16

672472R91

SHAFT ASSY.

SHAFT - Doffer (High drum)

4шт.

16

669828R91

SHAFT

- Doffer (Low drum)

4шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

Q3501

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch (20 x 32 x 1 mm)

1шт.

17

664176R92

DOFFER

- soft (Interchangeable with 204710C2)

1шт.

17

204710C2

DOFFER

- hard (Interchangeable with 664176R92)

1шт.

18

669809R1

SHIELD

- Doffer shaft lower bearing

4шт.

19

669808R1

WASHER

- Doffer shaft lower

4шт.

20

669807R91

BALL BEARING,0.751" ID x 52 mm OD x 0.7"

- Doffer shaft lower

4шт.

21

669806R2

CAGE

- lower Doffer bearing

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex, 3/8 NC x 1/2 inch

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

22

201396C1

GASKET

- Doffer adjusting screw

4шт.
