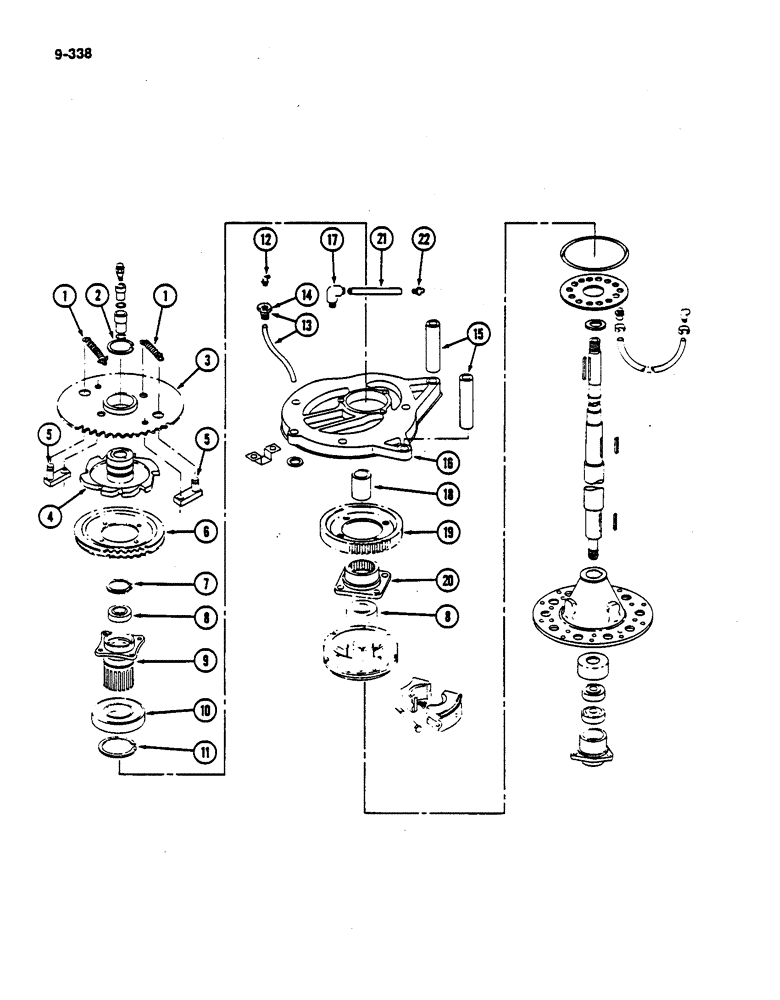

Запчасти Case IH 782 (9-338) - DRUM ROTOR AND DRIVE (09) - CHASSIS ATTACHMENTS

1

204856C1

SPRING

- drawbar

8шт.

633090R1

WASHER

- flat, 2-9/32 x 2-3/4 x 1/16 inch (58 x 70 x 2 mm)

4шт.

2

644771R1

SNAP RING,#225, Ext

Ring, Snap, , safety clutch ratchet #225, Ext

4шт.

3

660499R93

SPROCKET ASSY.

SPROCKET - drum drive front, 56 teeth

1шт.

3

660496R93

SPROCKET ASSY.

SPROCKET - drum drive rear, 53 teeth

2шт.

4

86846C1

RATCHET

- safety clutch (Replaces 660507R1)

4шт.

5

665022R93

BAR

PAWL - ratchet

8шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2 NF x 1 inch

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

6

662504R1

SPROCKET ASSY.

SPROCKET - spindle drive front, 44 teeth

1шт.

6

668560R1

SPROCKET ASSY.

SPROCKET - spindle driven rear, 40 teeth

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex, 3/8 NF x 3/4 inch

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

560819R1

SNAP RING,#283, 3.009", Int, Spiral

RING - upper bearing retainer snap

8шт.

8

223826C91

BEARING ASSY,1.378" ID x 2.834" OD x 0.669"

BEARING - drum drive shaft

8шт.

9

220358C1

HUB

- splined drive sprocket

4шт.

10

201118C91

BEARING ASSY,65mm ID x 100mm OD x 18mm W

BEARING - cam center

4шт.

179812

GEAR

- hex, 5/16 NC x 1/2 inch

12шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

Q398

WASHER

- flat, 11/32 x 7/8 x 1/16 inch (9 x 22 x 2 mm)

12шт.

11

300048R1

SNAP RING,#255, Ext

Ring, Snap, , cam bearing #255, Ext

4шт.

12

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - 65 degree angle grease, 1/8-27 PTF (Drum rear)

4шт.

13

669784R21

TUBE,1" OD, 5.33, 3.62" Length

ASSEMBLY - cam lubricator

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - cam lubricator

4шт.

119240

SPACER

NUT - pipe lock, 1/4 inch

4шт.

15

657744R1

SPACER

- cam upper

10шт.

16

215460C1

CAM

- left drum front

1шт.

16

215461C1

CAM

- right drum front

1шт.

16

215586C1

CAM

- left drum rear

1шт.

16

215587C1

CAM

- right drum rear

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

4шт.

222994C2

BOLT,5/8" - 11 x 11"

- hex, 5/8 NC x 11 inch

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

17

105422

ELBOW UNION

ELBOW - 90 degree street, 1/8-27 PTF (Front rotor)

2шт.

18

672448R2

SPACER

- inner bearing

4шт.

19

660620R1

GEAR

- spindle drive rear

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex, 3/8 NF x 3/4 inch

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

11696R

GEAR

- spindle drive front

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex, 3/8 NF x 3/4 inch

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

20

201110C1

GEAR

HUB - spindle gear

1шт.

21

215747C1

PIPE

- cam lub nipple (Front rotor)

2шт.

22

126122

FITTING

- straight grease, 1/8-27 PTF (Front rotor)

2шт.
