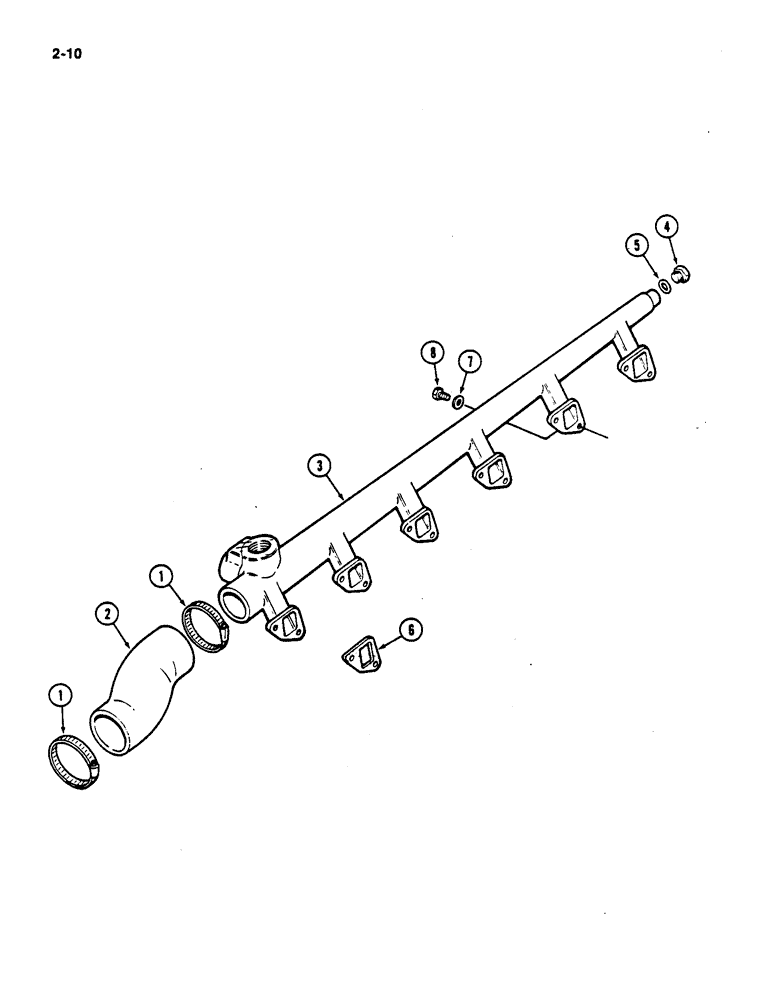

Запчасти Case IH 782 (2-10) - WATER COLLECTING PIPE AND CONNECTIONS, D358 DIESEL ENGINE (01) - ENGINE

1

3218259R1

CLAMP,M40-60, Worm

- hose

2шт.

2

3132912R1

HOSE,50.70 mm ID x 112.00 mm

- Connecting 50.70 mm ID x 112.00 mm

1шт.

3

3132435R1

MANIFOLD

PIPE - water collecting

1шт.

4

712616R1

PLUG,Hex, M14 x 1.5

Filler and drain Hex, M14 x 1.5

1шт.

5

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

6

3055306R1

GASKET

- water collecting pipe

6шт.

7

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- 0.335 x 0.750 x 0.098 (9 x 19 x 3 mm)

12шт.

8

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

12шт.
