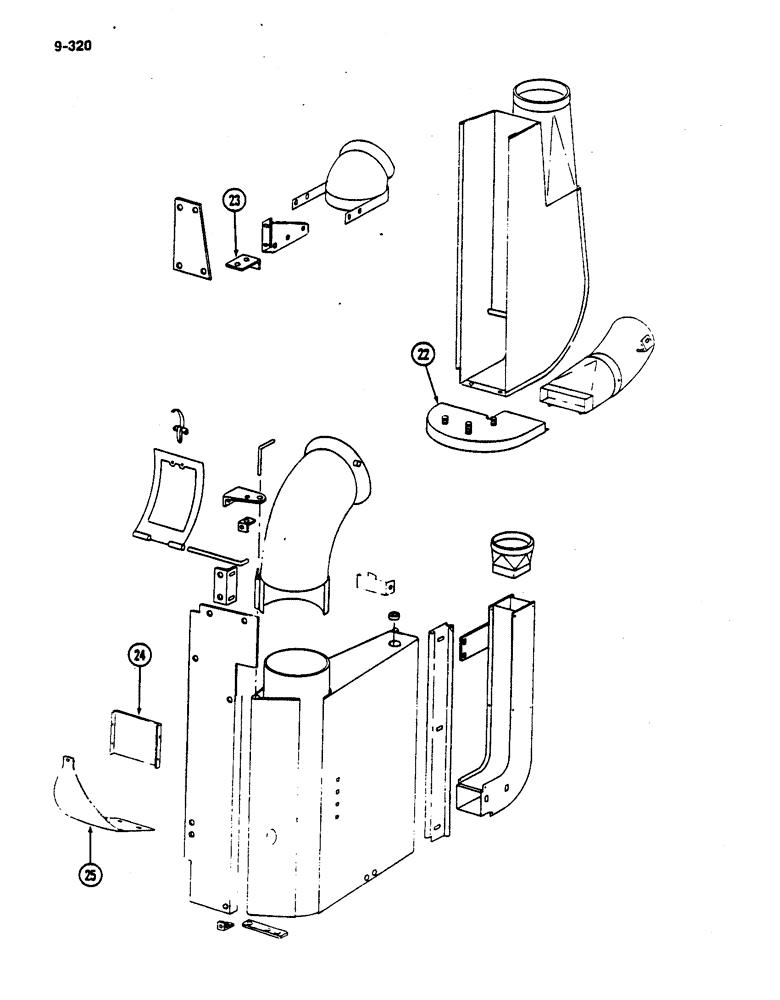

Запчасти Case IH 782 (9-320) - DRUM DOORS AND REAR OUTLETS (09) - CHASSIS ATTACHMENTS

22

209405C1

DUCT

- rear left (Continued from Page 9-319)

1шт.

22

209406C1

DUCT

- rear right

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

23

209825C1

SUPPORT

- rear door guard angle

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

223717C1

BAFFLE

- door inlet (High drum)

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

25

223771C1

PLATE

- door bottom wear

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.
