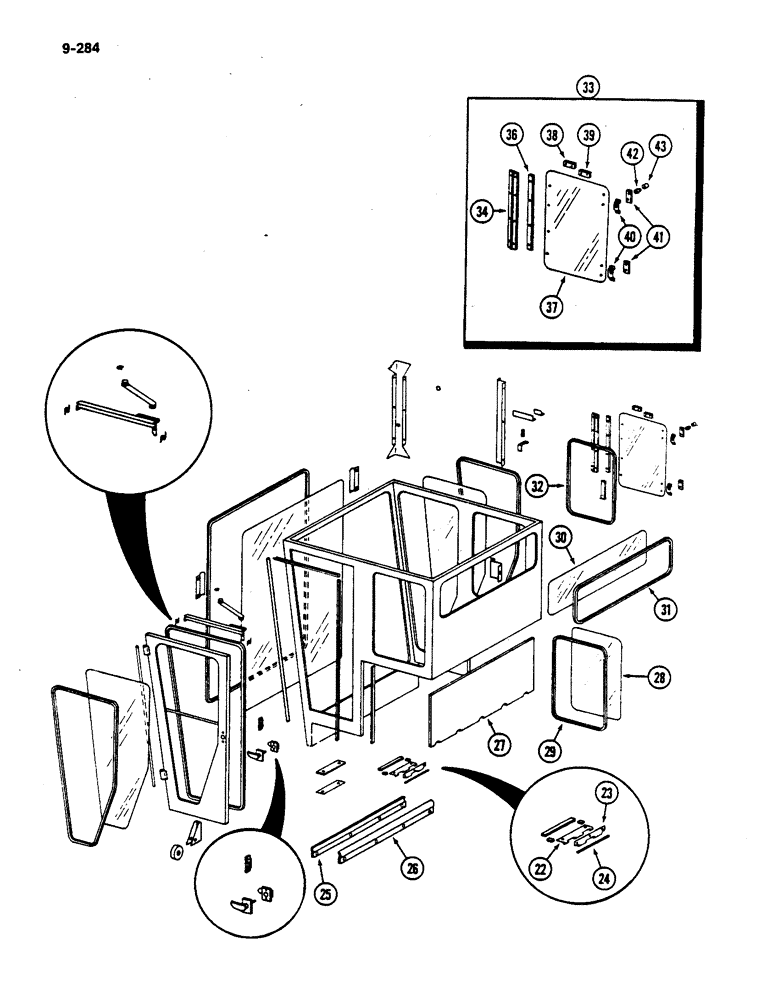

Запчасти Case IH 782 (9-284) - OPERATORS CAB BOTTOM (09) - CHASSIS ATTACHMENTS

21

NSS

NOT SOLD SEPARAT

STRIP - cleanout door end, 1 inch (25 mm) (Cut from 198530C1, 50 foot roll) (15 m) (Continued from Page 9-283)

2шт.

198530C1

SEAL

STRIP - seal, 50 foot (15 m) roll

1шт.

22

198142C1

DOOR

HINGE - cleanout door (Note A)

1шт.

195974C1

FASTENER

(Note A)

2шт.

196548C1

SPRING

(Note A)

2шт.

190447H1

WASHER

(Note A)

2шт.

929734C1

RETAINER

(Note A)

2шт.

871811C1

RECEPTACLE (Note A)

2шт.

196880C1

RIVET

(Note A)

4шт.

23

198165C1

HINGE

- cleanout door (Note A)

1шт.

163485C1

RIVET

- pop (Note A)

3шт.

24

196881C1

PIN

- hinge (Note A)

1шт.

648002

KNIFE

1/8" x 3/4" (Note A)

2шт.

25

198174C1

SUPPORT

RETAINER - windshield molding outer

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

5шт.

26

198173C1

SUPPORT

RETAINER - windshield molding inner

1шт.

27

198290C1

INSULATOR

PANEL - rear insulation

1шт.

28

198244C1

GLASS

- left rear

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - left glass, 85 inch (2159 mm) (Cut from 198131C2, 50 foor roll) (15 m)

1шт.

30

198247C1

GLASS

- cab rear

1шт.

31

NSS

NOT SOLD SEPARAT

STRIP - rear glass, 121 inch (3073 mm) (Cut from 198131C2, 50 foot roll) (15 m)

1шт.

32

183539C1

STRIP

- right rear window (Note A)

1шт.

32

1301235C1

STRIP

- right rear window (Note B)

1шт.

33

183580C91

GLASS

WINDOW ASSEMBLY - right rear (Note A)

1шт.

33

1301231C91

WINDOW ASSY

WINDOW ASSEMBLY - right rear (Note B)

1шт.

34

183582C1

HINGE

- window (Note A)

1шт.

34

1301233C1

HINGE

- window (Note B)

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

4шт.

36

180583C1

STRIP - sealing (Note A)

1шт.

36

1301234C1

STRIP

- sealing (Note B)

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head Phillips, No. 10 x 1-3/4 inch

2шт.

196922C1

LOCK NUT

- hex, No. 10 NC

6шт.

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch (6 x 13 x 1 mm)

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head Phillips, No. 10 x 3/4 inch

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

37

183581C1

GLASS

- right rear window (Note A)

1шт.

37

1301232C1

GLASS

- right rear window (Note B)

1шт.

38

183584C1

STRIP

- right rear window

1шт.

39

183585C1

STRIP

- right rear window

1шт.

40

170404C1

HANDLE

- right rear window

1шт.

159972

SCREW,Cross Pan Hd, #10 - 24 x 1 3/4"

- pan head Phillips, No. 10 NC x 1-3/4 inch

2шт.

196922C1

LOCK NUT

- hex, No. 10 NC

6шт.

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch (6 x 13 x 1 mm)

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head Phillips, No. 10 NC x 3/4 inch

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

41

183585C1

STRIP

- right rear window

2шт.

42

896274C1

BUSHING

- retainer cushion

10шт.

43

196926C1

END FITTING

GRIP - window lock bolt

4шт.
