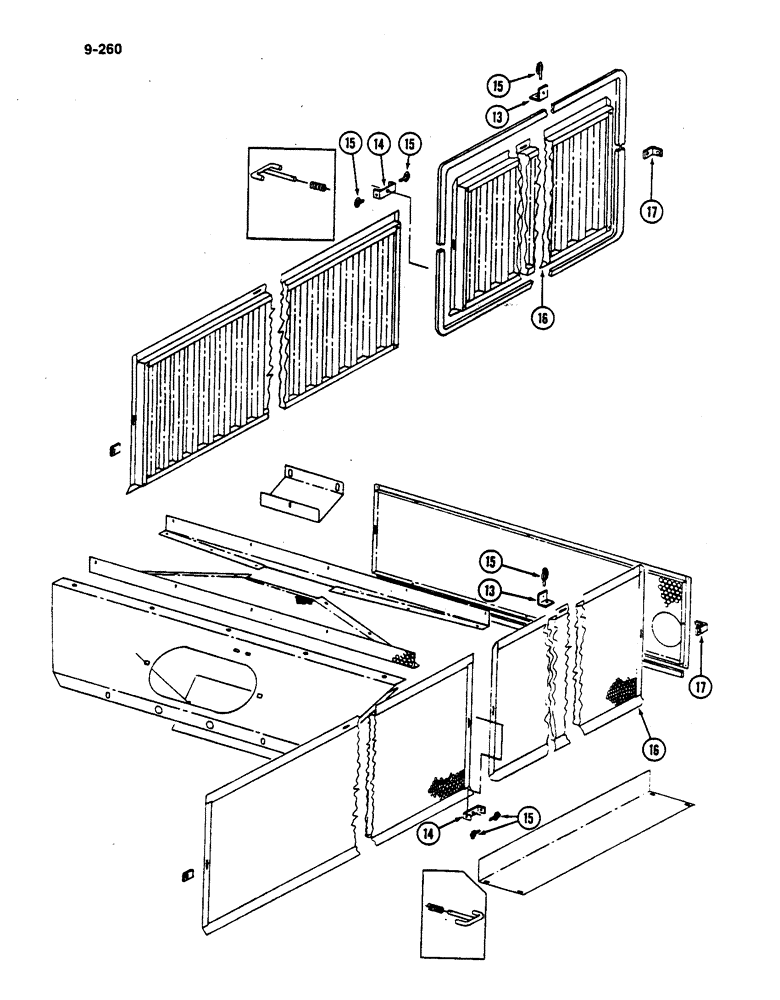

Запчасти Case IH 782 (9-260) - RADIATOR SCREENS (09) - CHASSIS ATTACHMENTS

13

216479C2

CLIP

ANGLE - screen retainer (Low drum P.I.N. 607 and after) (High drum P.I.N. 1346 and after) (Continued from Page 9-259)

2шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

216480C2

CLIP

CHANNEL - screen center (Low drum P.I.N. 607 and after) (High drum P.I.N. 1346 and after)

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

479696R91

AXLE PIN

PIN - klik

6шт.

16

1322903C1

CLEANER

- engine and radiator side rear

2шт.

17

1322902C1

ANGLE

- rear screen retainer

2шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
