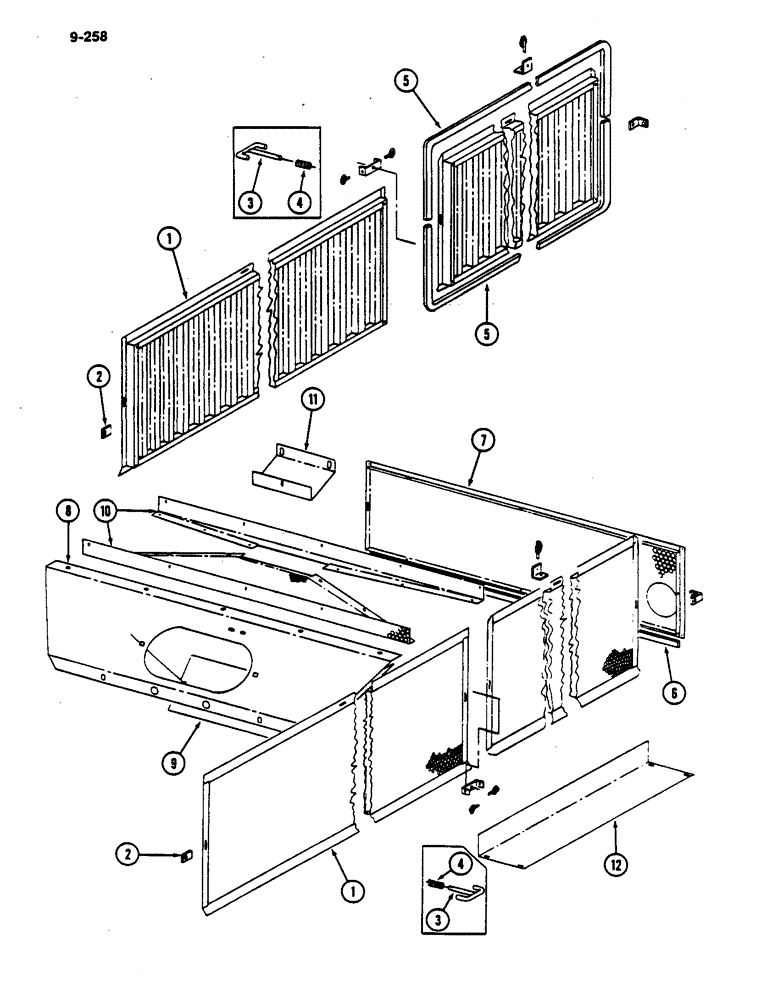

Запчасти Case IH 782 (9-258) - RADIATOR SCREENS (09) - CHASSIS ATTACHMENTS

1

214727C2

CLEANER

- engine and radiator side, front

2шт.

2

216162C1

BAR

- cleaner screen support

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

526712R1

BUSHING

SPACER - pipe, 1/4 x 9/16 inch

2шт.

3

215257C2

LATCH - screen center (Low drum P.I.N. 507 thru 606) (High drum P.I.N. 507 thru 1345)

2шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

133702C1

SPRING

- compression (Replaces 376759C1) (Low drum P.I.N. 507 thru 606) (High drum P.I.N. 507 thru 1345)

2шт.

5

SEAL - cleaner side, 159 inch (4039 mm) (Cut from 1263038C1, bulk roll)

2шт.

6

SEAL - cleaner screen rear, 44 inch (1118 mm) (Cut from 1263038C1, bulk roll)

1шт.

7

214718C1

SCREEN

- rear

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

8

214678C1

SHIELD

SECTION - radiator bottom shield

1шт.

481556C1

NUT

- speed grip, 5/16 inch NC

2шт.

9

214679C1

BAR

- radiator bottom shield cover

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1 mm)

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 mm)

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , NC 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

10

214665C1

SUPPORT

- bolster filler sheet

2шт.

11

215893C1

SUPPORT

- guide wheel shield

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex washer head tap, 1/4 x 1/2 inch

12шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

12

214663C1

SUPPORT

- fuel tank side

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
