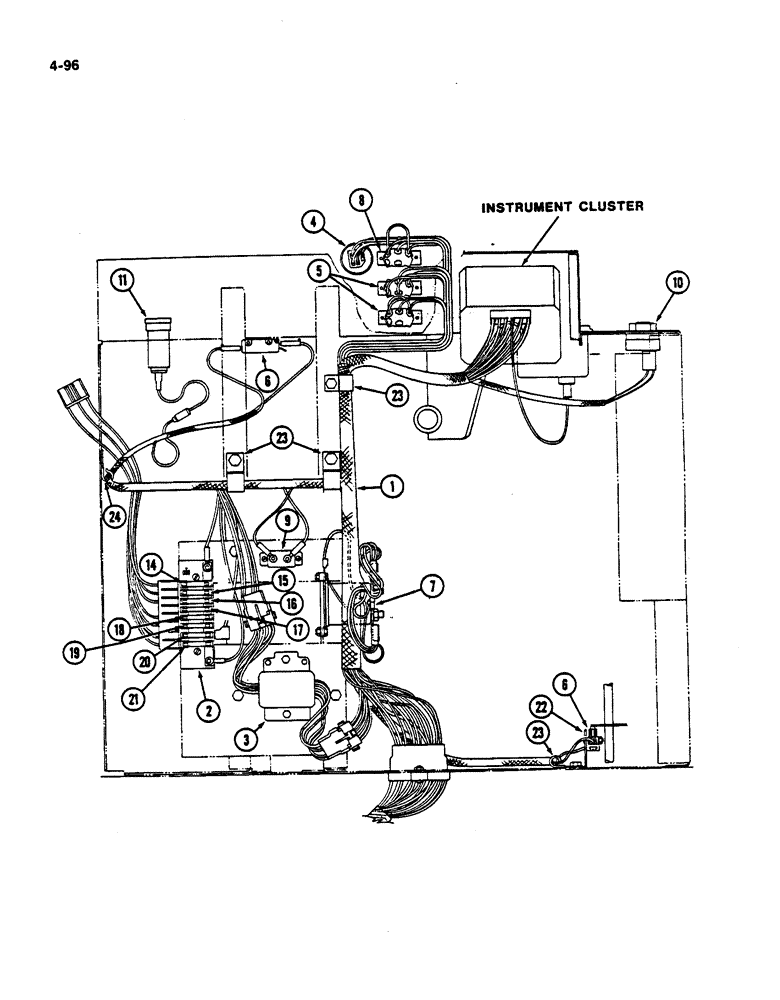

Запчасти Case IH 782 (4-096) - CONSOLE WIRING (06) - ELECTRICAL SYSTEMS

1

121667C3

HARNESS

ASSEMBLY - console

1шт.

2

196875C1

BLOCK

PANEL - fuse

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- hex machine, No. 10 x 1/2 inch,Course threads

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

3

187609C1

RECTIFIER

MODULE ASSEMBLY - warning circuit

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 NC x 1/2 inch

2шт.

4

221387C1

SWITCH

- ignition and starting

1шт.

131313C1

KEY, IGNITION

KEY

1шт.

365502R1

NUT

- switch mounting

2шт.

125793

LOCK, Int Tooth, 13/16"

1шт.

5

195605C1

SWITCH

ASSEMBLY - light

2шт.

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

- machine, No. 6 x 5/8 inch

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

6

633643R91

SWITCH

ASSEMBLY - parking brake warning, light and water solenoid

2шт.

68107H

LOCK NUT

- hex, 3/8 inch NF

1шт.

469668R1

WASHER

- flat, 13/32 x 47/64 x 3/64 inch (10 x 18 x 1 mm)

1шт.

159376

HYDRAULIC HOSE

SCREW - machine, No. 6 x 1 inch

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

495-21019

WASHER,#8

- flat, 3/16 x 7/16 x 1/32 inch (4 x 11 x 1 mm)

2шт.

7

107655C1

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic console

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

198960C1

SWITCH

ASSEMBLY - ether

1шт.

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

- mchine, No. 6 x 5/8 inch

2шт.

9

173906C1

BREAKER

- cab circuit (30 amp)

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - machine, No. 10 x 1/2 inch

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

121628C1

BUZZER

- alarm

1шт.

11

195778C91

LIGHTER, CIGARETTE

LIGHTER - cigarette

1шт.

14

9426331

FUSE CARTRIDGE,30 Amp, Type 3AG

FUSE - 3AG-30 (Lt green) (Work lights)

1шт.

15

9428126

FUSE,20 Amp, Type SFE

- SFE-20 (Yellow) (Accessories)

1шт.

16

9426334

FUSE,10 Amp, Type 3AG

- 3AG-10 (Red) (Headlights)

1шт.

17

9426334

FUSE,10 Amp, Type 3AG

- 3AG-10 (Red) (Fuel gauge)

1шт.

18

9426334

FUSE,10 Amp, Type 3AG

- 3AG-10 (Red) (Accessories)

1шт.

19

9426334

FUSE,10 Amp, Type 3AG

- 3AG-10 (Red) (Ether start)

1шт.

20

3118918R1

FUSE

- 3AG-5 (Tan) (Instruments)

1шт.

21

9428126

FUSE,20 Amp, Type SFE

- SFE-20 (Yellow) (Warning lights)

1шт.

22

215874C1

SUPPORT

- water solenoid switch

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

23

371036R1

CLIP

- cable, insulated

4шт.

24

362121R1

CLIP

- cable, insulated

1шт.
