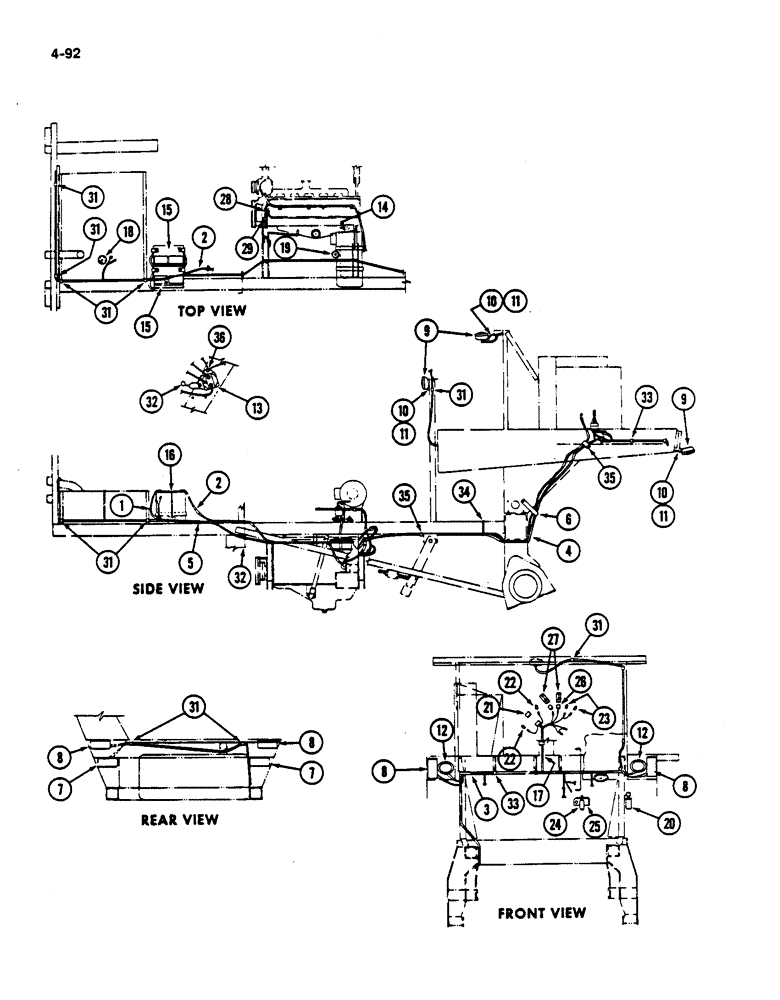

Запчасти Case IH 782 (4-092) - CHASSIS WIRING, LOW DRUM P.I.N. 682 AND AFTER, HIGH DRUM P.I.N. 2125 AND AFTER (06) - ELECTRICAL SYSTEMS

1

221409C2

CABLE

ASSEMBLY - battery ground

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 15 x 1 mm)

1шт.

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch (8 x 19 x 2 mm)

1шт.

2

221410C1

CABLE

ASSEMBLY -, Serial Range: battery-starter

1шт.

3

121668C1

HARNESS

ASSEMBLY - front

1шт.

4

121669C2

HARNESS

ASSEMBLY - center

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - round head slotted, No. 10 x 1/2 inch

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

221657C1

HARNESS

ASSEMBLY - rear

1шт.

6

216043C1

SUPPORT

- cable tie

1шт.

7

216044C92

LAMP

LIGHT ASSEMBLY - tail

2шт.

216045C1

LENS

- red

2шт.

9417867

BULB,C6, #1157, 12.8V

- lamp, No. 1157

2шт.

806122C1

NUT

- plastic insert

4шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - tap, No. 10 x 2-1/2 inch

4шт.

8

130882C91

LAMP

LIGHT ASSEMBLY - warning

4шт.

130883C1

LENS

- amber

4шт.

9417868

BULB - lamp, No. 1158

4шт.

806122C1

NUT

- plastic insert

8шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - tap, No. 10 x 2-1/2 inch

8шт.

9

391005R91

HEADLIGHT

LIGHT ASSEMBLY - work

4шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

373662R91

LAMP

- seal beam

4шт.

530029R1

CONNECTOR ASSEMBLY - (For Hobbs light assembly)

1шт.

676078R1

RETAINER

(For Hobbs light assembly)

4шт.

1252609C1

RETAINER

- (For Midwest light assembly)

4шт.

120371

NUT,1/2"-20, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

1267358C2

SEAT

INSULATOR - light mounting

4шт.

11

561915R1

BRACKET

- light mounting

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

215831C91

LAMP

HEADLIGHT ASSEMBLY

2шт.

373662R91

LAMP

- seal beam

2шт.

NSS

NOT SOLD SEPARAT

SHELL

1шт.

131508C1

LAMP BASE

LAMP - bulb, No. H7610 (Replacement)

1шт.

175570C1

SEAL RETAINER

RETAINER

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

13

121613C1

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic (Continued from Page 4-93)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

3224405R91

RESTRICTION SWITCH

SWITCH ASSEMBLY - air cleaner vacuum

1шт.

105412

ELBOW,90 Degree, 1/8" NPT

- Pipe street, 1/8 inch x 90 degree

1шт.

15

186013

BATTERY - 12 volt

2шт.

16

221349C1

ROD

U-BOLT - battery hold down

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

216439C1

HARNESS

ASSEMBLY - steering post

1шт.

18

REF

INSTRUCTION

SENDING UNIT - fuel gauge (See Page 3-81)

1шт.

19

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether injection (See Pages 2-23, 2-25)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - water shutoff (See Pages 9-411, 9-413)

1шт.

21

131066C91

SWITCH

ASSEMBLY - turn signal (Replaces 107334C91)

1шт.

22

121684C91

LIGHT ASSY.

LIGHT ASSEMBLY - turn signal indicator

2шт.

71892R1

PAD

LENS, turn signal indicator

2шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

2шт.

23

109369C91

LIGHT ASSY.

LIGHT ASSEMBLY - steering indicator

2шт.

NSS

NOT SOLD SEPARAT

HOUSING

2шт.

71652C1

LENS

- steering indicator

2шт.

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

2шт.

24

196825C1

IGNITION SWITCH

SWITCH ASSEMBLY - neutral start

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam, 1/2 inch NF

2шт.

25

214542C1

SUPPORT

- neutral start switch

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

216177C1

SUPPORT

CONTACT - wheel indicator

2шт.

160284

SCREW - machine, No. 12 x 5/8 inch

4шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 15 x 1 mm)

1шт.

178502

WASHER - internal, external, No. 12 Ext-Int Tooth, #12

2шт.

27

215927C1

SUPPORT

- wheel indicator

2шт.

806122C1

NUT

- plastic insert

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

4шт.

28

475960C91

CABLE

- engine ground

1шт.

29

221486C1

CLAMP - cable

1шт.

30

118833

CHAIN,5/8" ID x 1 11/64" x .156", Diag Cut

- cable

1шт.

31

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - insulated

1шт.

32

363660R1

CLIP

- insulated

1шт.

33

371036R1

CLIP

- insulated

1шт.

34

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

35

204412R1

CLIP,ELECTRICAL

CLIP - plain

1шт.

36

216139C1

PAD

- engine solenoid

1шт.
