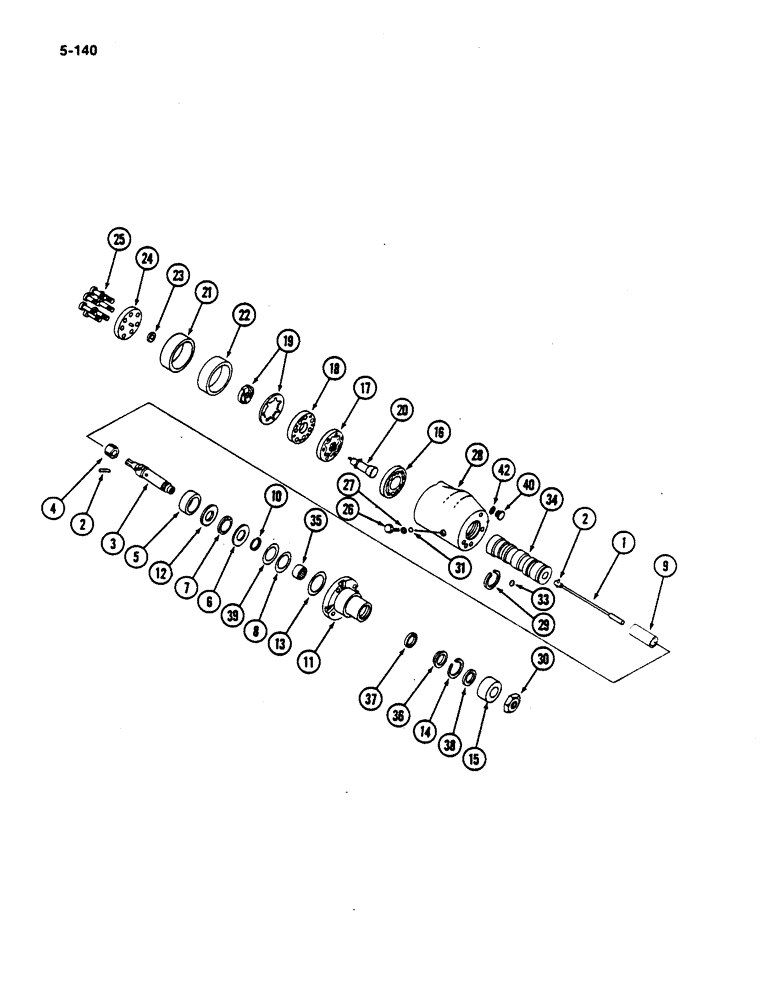

Запчасти Case IH 782 (5-140) - POWER STEERING PUMP (04) - STEERING

215308C92

PUMP

ASSEMBLY - steering

1шт.

1

73830C1

BAR

ASSEMBLY - torsion

1шт.

2

535056R1

PIN

1шт.

3

535057R1

SHAFT

- input

1шт.

4

535058R1

RING

- drive

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

- thrust

1шт.

7

379783R91

THRUST BEARING

BEARING - thrust

1шт.

8

67567C1

PACKAGE

KIT - shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (0.508 mm)

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (1.270 mm)

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (2.540 mm)

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch (7.620 mm)

1шт.

9

79007C1

SPACER

- drive link

1шт.

10

928752C1

RING

- retaining

1шт.

11

70115C1

COVER

- upper

1шт.

197292H1

CAPSCREW,Flange, 5/16" x 0.75", Alloy Steel

BOLT - 12 point flange head, 5/16 NC x 3/4 inch

4шт.

12

379785R1

THRUST WASHER

WASHER - thrust

1шт.

13

535091R1

RING

- seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

79013C1

SPACER

1шт.

16

535093R1

SPACER

1шт.

17

79008C1

ROTOR

SET

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSEMBLY

1шт.

20

538069R1

DRIVE

LINK - drive

1шт.

21

73832C1

RETAINER

SPACER - seal

1шт.

22

73831C1

SEAL

HOSE - rotor

1шт.

23

535100R1

THRUST WASHER

1шт.

24

NSS

NOT SOLD SEPARAT

COVER - end (Order pump assembly)

1шт.

25

73833C1

BOLT

- end cover

7шт.

26

379901R91

PLUG

AND PIN ASSEMBLY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

3шт.

28

NSS

NOT SOLD SEPARAT

BODY - (Order pump asembly)

1шт.

29

79012C1

PACKAGE

KIT - spring ball preload (Replaces 536360R1)

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT

1шт.

31

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

33

17010R1

BALL,5/16" Dia

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL - pump (Order pump assembly)

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - needle (Order cover assembly 70115C1)

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - spacer (Order kit 123465C1)

1шт.

37

NSS

NOT SOLD SEPARAT

RING - shaft seal (Order kit 123465C1)

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - felt dust (Order kit 123465C1)

1шт.

39

928469C1

WAVE WASHER

- wave

1шт.

40

71085C1

PLUG

AND PIN ASSEMBLY

2шт.

42

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 inch OD tube

2шт.

123465C1

X

KIT - steering pump service

1шт.

NSS

NOT SOLD SEPARAT

SEAL - spacer

1шт.

NSS

NOT SOLD SEPARAT

RING - shaft seal

1шт.

NSS

NOT SOLD SEPARAT

SEAL - shaft ring

1шт.

NSS

NOT SOLD SEPARAT

SEAL - felt dust

1шт.
