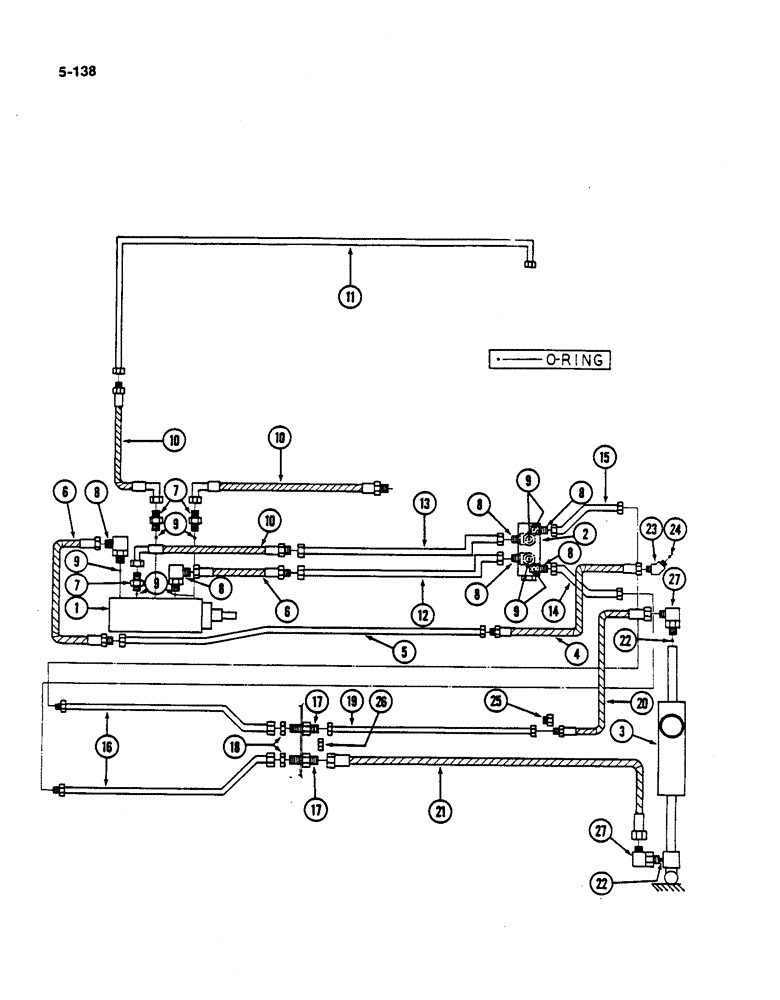

Запчасти Case IH 782 (5-138) - POWER STEERING PUMP, CYLINDER AND RELATED PARTS (04) - STEERING

1

215308C92

PUMP

ASSEMBLY - steering (See Page 5-141)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

673293R92

VALVE

ASSEMBLY - steering check (See Page 5-143)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

108878C92

CYLINDER

ASSEMBLY - steering (See Page 5-145)

1шт.

80446C91

PACKAGE

KIT - O-ring and seal

1шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - 65 degree grease

2шт.

3

133764C91

CYLINDER

ASSEMBLY - steering (Machines with wide rear axle) (See Page 5-147)

1шт.

76667C91

KIT

- O-ring and seal

1шт.

575812R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch (18 x 38 x 3 mm)

2шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT - hex slotted, 5/8 inch NF

2шт.

454490

PIN

- cotter, 3/32 x 1-1/2 inch

2шт.

4

214987C1

HOSE

- power steering supply lower

1шт.

5

216096C1

TUBE

- steering pump supply

1шт.

6

216240C2

HOSE

- steering hand pump

2шт.

200549C2

CLAMP

STRAP - tie

1шт.

7

382449R1

CONNECTOR, ELEC

UNION - reducer, 3/4-16 to 9/16-18 inch thread

3шт.

8

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- reducer, 3/4-16 to 9/16-18 inch thread

6шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

9шт.

10

216241C2

HOSE

- steering hand pump

3шт.

11

215788C1

TUBE

- steering drain

1шт.

12

215803C1

TUBE - steering pump to check valve

1шт.

13

215802C1

TUBE - steering pump to check valve

1шт.

14

215796C1

TUBE - steering check to basket side

1шт.

15

215797C1

TUBE

- steering pump check to basket side

1шт.

16

215019C1

TUBE

- steering check to bulkhead fitting

2шт.

17

9403255

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - hydraulic tube straight bulkhead, 3/4-16 inch thread

2шт.

18

9403294

NUT

- bulkhead, 3/4-16 inch thread

2шт.

19

216228C1

TUBE - steering cylinder (Note A)

1шт.

19

216324C2

HOSE

- upper steering (Note B)

2шт.

20

216232C1

HOSE

- steering cylinder (Note A), Serial Range: (Prior-1982)

1шт.

20

214987C1

HOSE

- steering cylinder (Note A) (1982 and after)

1шт.

20

216326C2

HOSE

- steering cylinder (Note B)

1шт.

21

216231C1

HOSE

- steering cylinder (Note A)

1шт.

21

216325C2

HOSE ASSY.

HOSE - steering cylinder (Note B)

1шт.

22

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube, note A

2шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube (Note B)

2шт.

23

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degree tube, short swivel, 3/4-16 inch thread

1шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

1шт.

25

9403333

PLUG,3/4"-16, 37 Degree

- hydraulic tube, 3/4-16 inch thread (Machines with tow away)

1шт.

26

9403372

CAP,37 Degree, 3/4"-16

- hydraulic tube, 3/4-16 inch thread (Machine with tow away)

1шт.

27

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- reducer, 3/4-16 to 9/16-18 inch thread (Note A)

2шт.

27

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable straight thread tube, 3/4-16 inch thread (Note B)

2шт.
