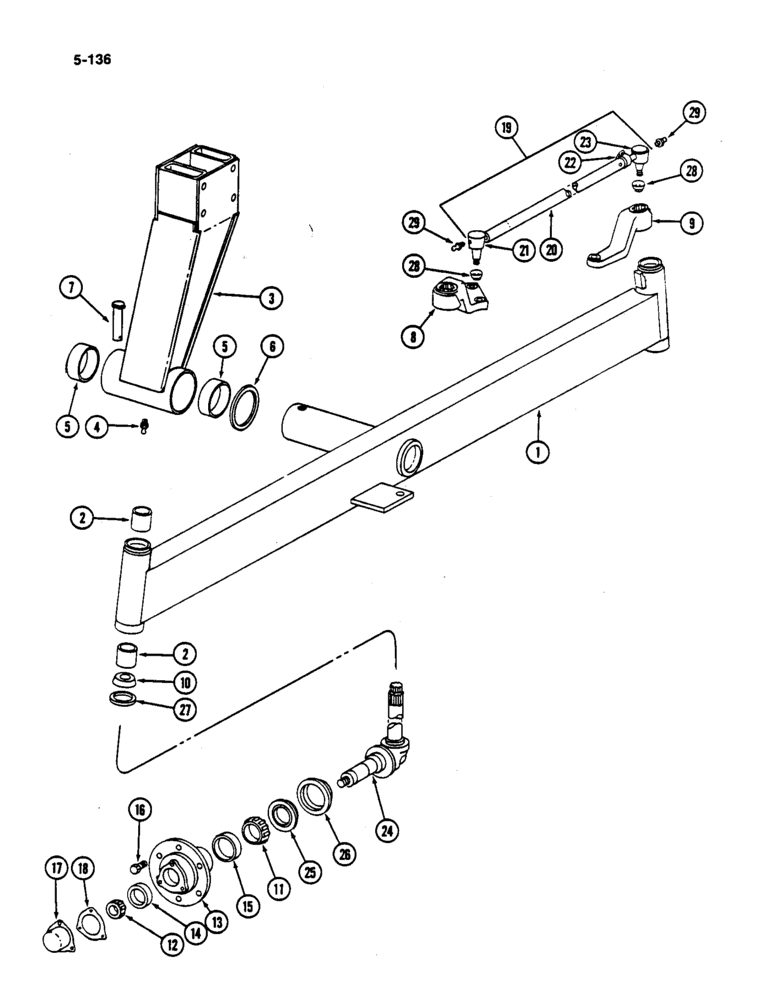

Запчасти Case IH 782 (5-136) - WIDE REAR AXLE (04) - STEERING

1

217623C92

AXLE

ASSEMBLY - guide wheel fixed

1шт.

2

376099R1

BUSHING

4шт.

3

217401C91

BOLSTER

ASSEMBLY - guide wheel

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING - taper drive thread grease 1/4-28 inch thread

1шт.

5

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

21441R1

BOLT,Hex, 3/4"-10 x 8 1/4", G8

- hex, 3/4 NC x 8-1/4 inch (Grade 8)

4шт.

25529R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC (Grade 8)

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

6

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- guide axle pivot

1шт.

7

177762C1

PIN

- guide wheel axle pivot

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

8

177776C3

ARM

- steering knuckle left

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF

1шт.

22827R1

WASHER

- flat, 1-13/32 x 2-3/4 x 3/64 inch (36 x 70 x 1 mm)

1шт.

9

177777C1

ARM

- steering knuckle right

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF

1шт.

22827R1

WASHER

- flat, 1-13/32 x 2-3/4 x 3/64 inch (36 x 70 x 1 mm)

1шт.

10

405831R91

BEARING

ASSEMBLY

2шт.

11

G15215

ROLLER BEARING

BEARING - cone

2шт.

12

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone

2шт.

13

391823R11

HUB

ASSEMBLY - wheel

2шт.

13

391823R11GV

HUB

Value, Hub Assy.

2шт.

14

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Wheel hub outer

1шт.

15

619387R1

BEARING CUP

BEARING - wheel hub inner cup

1шт.

16

51485D

BOLT,9/16" - 18 x 1 7/32"

- front wheel hub

12шт.

17

369859R1

CAP

- front wheel hub

2шт.

18

369860R1

GASKET,0.79mm Thk

- front wheel hub

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

179123C91

ROD

ASSEMBLY - adjustable axle tie

1шт.

20

179226C1

TUBE,1.012" ID, 1.36" OD, 52.31" Length

- tie rod

1шт.

21

179227C1

END

- tie rod left

1шт.

22

225265R1

CLAMP

- tie rod right

1шт.

23

179228C1

END ASSY.

END - tie rod right

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21796R1

WASHER

- flat, 21/32 x 1 x 3/64 inch (17 x 25 x 1 mm)

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25776R1

BOLT

BOLT - hex, 3/8 NF x 2-1/2 inch (Grade 8)

1шт.

24

71785C92

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering

2шт.

25

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

1шт.

26

48701D

SHIELD

SHEILD

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- hardened flat, .89 x 1.88 x 5 gauge

2шт.

27

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Felt

2шт.

28

382562R1

SEAL

2шт.

29

16964R91

FITTING

- 90 degree grease, 1/4-28 inch thread

2шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.
