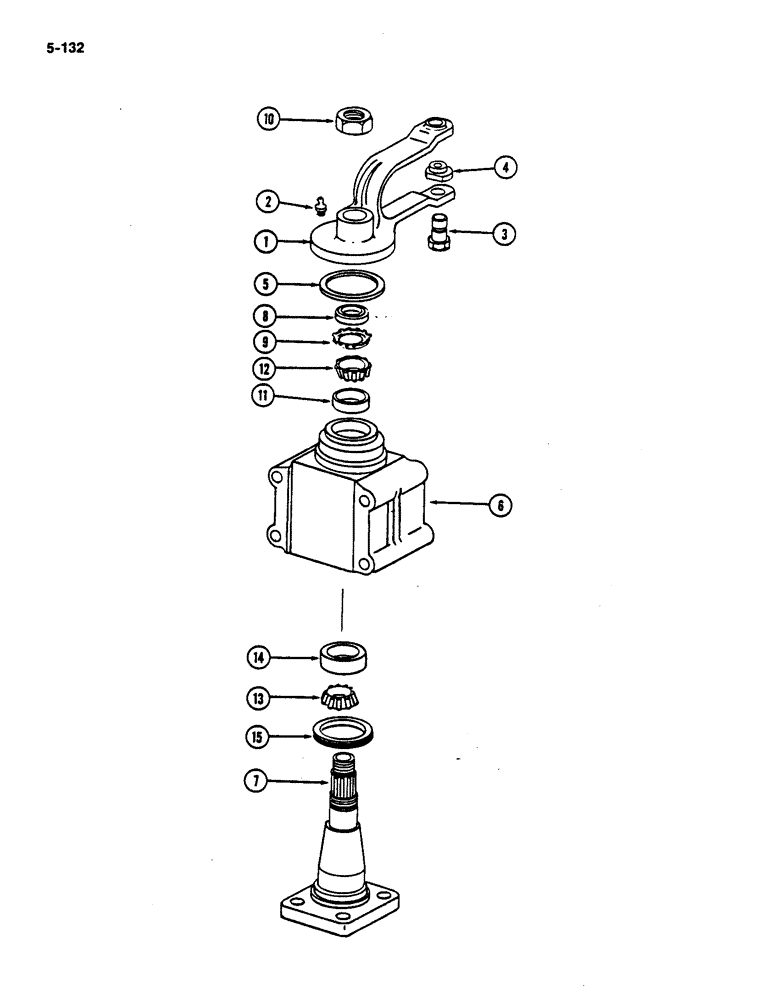

Запчасти Case IH 782 (5-132) - GUIDE WHEEL PIVOT (04) - STEERING

1

215591C1

ARM

- steering

1шт.

Q326

WASHER

- flat, 1-13/32 x 2-3/4 x 3/64 inch (36 x 70 x 1 mm)

1шт.

1270371C1

WASHER

1шт.

2

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - 65 degree grease, 1/8-27 PTF

1шт.

3

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

SHOULDER - bolt

2шт.

575812R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch (18 x 38 x 3 mm)

2шт.

4

531237R1

CAP

- trunnion

2шт.

5

210211C1

SEAL

- felt

1шт.

6

215625C2

CASE - guide wheel pivot shaft

1шт.

26251R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch (Grade 8)

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC (Grade 8)

4шт.

7

215611C2

SHAFT

- steering

1шт.

8

131-1036

BEARING LOCK NUT,Bearing, 1.7717" Bore

NUT - locking

1шт.

9

127689

WASHER, LOCK

WASHER - bearing

1шт.

10

427547

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF

1шт.

11

13207D

BEARING CUP,95.28mm OD x 22.35mm W

BEARING - steering shaft cup, upper

1шт.

12

ST785A

BEARING ASSY

BEARING ASSEMBLY - steering shaft upper cone

1шт.

13

ST2020

CONE

BEARING ASSEMBLY - steering shaft lower cone

1шт.

14

ST968

BEARING CUP,3" ID x 1.7875"

BEAIRNG - steering shaft lower cup

1шт.

15

215722C1

OIL SEAL

- oil

1шт.
