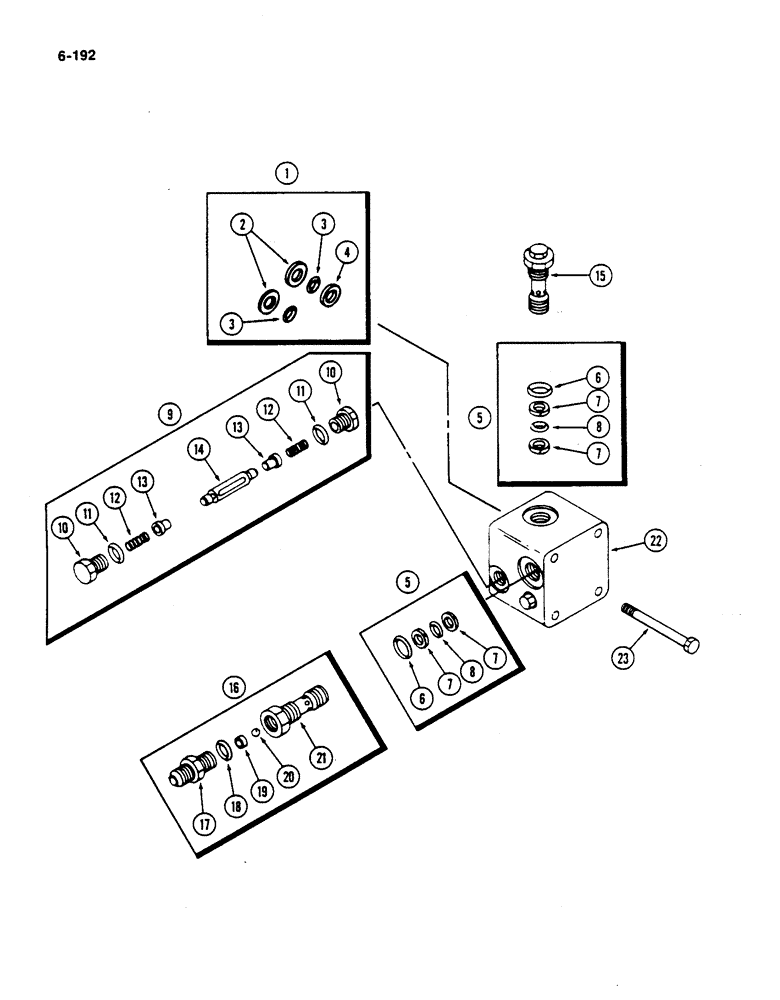

Запчасти Case IH 782 (6-192) - HYDROSTATIC MOTOR, RELIEF VALVE BLOCK (03) - POWER TRAIN

145554C92

BLOCK

ASSEMBLY - relief valve (Replaces 133752C91)

1шт.

1

140747C91

SEAL KIT

- valve block seal

1шт.

2

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch (19 x 22 2 mm)

1шт.

3

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

2шт.

4

631458C1

RING

- backup

2шт.

5

393885R91

GASKET KIT

KIT - relief valve seal

2шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch (27 x 31 x 3 mm)

1шт.

7

393887R1

BACK-UP RING

RING - backup

2шт.

8

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 x 1 x 3/32 inch (21 x 25 x 2 mm)

1шт.

9

145559C91

KIT

- shuttle valve

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - (Order 145559C91)

2шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

2шт.

12

145560C1

SPRING

- shuttle valve

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE - shuttle (Order 145559C91)

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - shuttle (Order 145559C91)

1шт.

15

140761C1

VALVE PRESSURE RELIE

VALVE - low pressure relief

1шт.

16

1266867C91

VALVE

- feathering relief (Replaces 402626R94)

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - special (Order 1266867C91)

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch OD tube (Order 1266867C91)

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - ball guide (Order 1266867C91)

1шт.

20

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4 inch (Order 1266867C91)

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve (Order 1266867C91)

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - valve (Order 145554C92)

1шт.

23

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.
