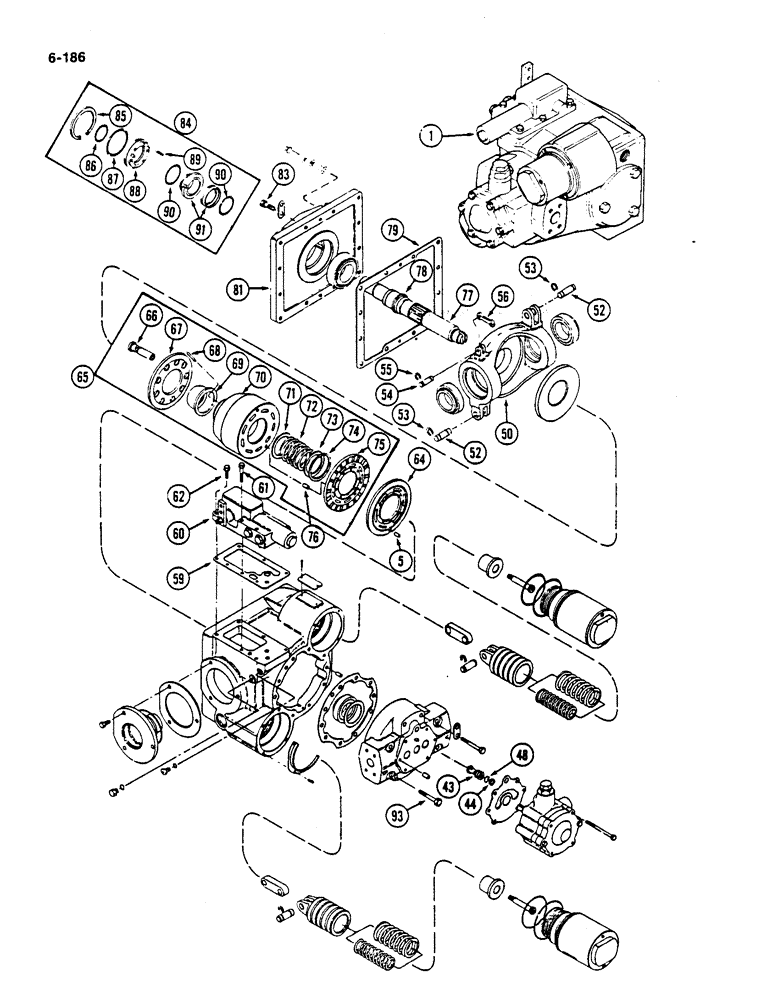

Запчасти Case IH 782 (6-186) - HYDROSTATIC PUMP, MACHINES BUILT 1979 AND AFTER (03) - POWER TRAIN

1

1255014C92

REMAN-INJECTION PUMP

PUMP ASSEMBLY - hydrostatic, remanufactured (North America only) (Continued from Page 6-185)

1шт.

43

140769C1

CHECK VALVE

VALVE - check

1шт.

44

140770C1

RING

- check valve

1шт.

48

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- check valve, 9/16 x 3/4 x 3/32 inch (14 x 19 x 2 mm)

2шт.

50

1252145C1

HOUSING

PLATE - swash (Replaces 142385C1) Low drum prior to P.I.N. 899, high drum prior to P.I.N. 4299

1шт.

50

80367

PLATE - swash Low drum P.I.N. 900 and after, high drum P.I.N. 4300 and after

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- link, control valve

1шт.

55

875777R1

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

56

142387C1

PIPE FITTING

LINK - connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

REF

INSTRUCTION

VALVE - control (See Page 6-191)

1шт.

61

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

2шт.

62

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

64

1255222C1

PLATE

- pump valve

1шт.

65

140777C91

KIT

- rotating group

1шт.

66

140778C1

PISTON

- cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

68

140779C1

PIN

- dowel pre-load

6шт.

69

NSS

NOT SOLD SEPARAT

GUIDE - retainer plate

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

71

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

72

NSS

NOT SOLD SEPARAT

SPRING - cylinder barrel

1шт.

73

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

74

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

75

140780C1

BEARING WASHER

- bearing

1шт.

76

140754C1

PIN

- bearing plate dowel

2шт.

77

140775C1

SHAFT

- input

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

79

140784C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

83

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

12шт.

84

142518C92

PACKAGE

SEAL ASSEMBLY - shaft

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

- shaft, 1-3/8 x 1-1/2 x 1/16 inch (35 mm x 38 x 2 mm)

1шт.

87

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch (65 x 70 x 3 mm)

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal

6шт.

90

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.
