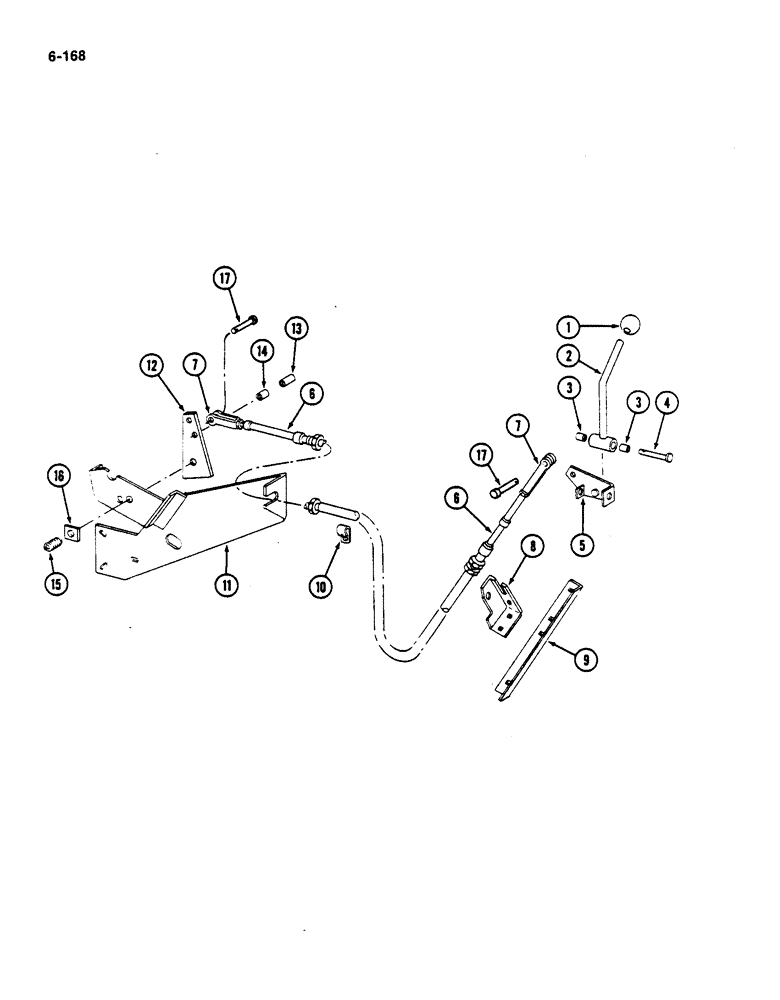

Запчасти Case IH 782 (6-168) - PROPULSION DRIVE CONTROLS (03) - POWER TRAIN

1

175815C1

KNOB

- propulsion lever

1шт.

2

214886C1

LEVER

ASSEMBLY - propulsion control

1шт.

3

165685C1

BUSHING

2шт.

4

28258R1

CLEVIS PIN,1/2" x 3 7/16'"

PIN - hardened clevis, 1/2 x 3-7/16 inch (Replaces 19876R1)

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

5

1267441C1

SUPPORT ASSY.

PIVOT - propulsion lever (Replaces 193275C1)

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

6

1329383C1

CABLE

- propulsion control (Replaces 674589R1)

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

7

104037

CLEVIS

- adjustable rod end, 5/16 NF x 2-1/4 inch

2шт.

8

214542C1

SUPPORT

BRACKET - propulsion control cable

1шт.

9

215894C1

SUPPORT

- cable bracket

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

BOLT - hex washer head tapping, 1/4 x 1/2 inch

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

358986R1

CABLE CLIP

CLIP - cable

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

- hex, 1/2 NC x 1 inch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

216316C1

SUPPORT

- pump control (Used with hydrostatic pump 1252340C92)

1шт.

11

221559C1

SUPPORT

- pump control (Used with hydrostatic pump 1255014C91)

1шт.

12

219716C1

BAR

LEVER - pump

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

- hex, 5/16 NC x 1-1/4 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

368163C1

BOLT,Spcl, Hex, 5/16" - 18 x 2 3/4"

BOLT

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

- hex jam, 5/16 inch NC

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

219618C2

BOLT

BOLT

1шт.

678026C1

ELECTRICAL WIRE

WIRE - seal

1шт.

678027C1

SEAL

1шт.

13

611112R1

SPACER,1/8" Pipe x 13/16"

- lever

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

1шт.

14

354260R1

SPACER,1/8" Pipe x 7/16"

1шт.

15

M74376

SPRING

- friction plate

1шт.

16

674599R2

FRICTION WASHER

- friction

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

178375R1

WASHER

- flat, 25/32 x 1-1/4 x 3/64 inch (20 x 32 x 1 mm)

1шт.

17

121741

FENDER

PIN - clevis, 5/16 x .940 inch

2шт.

137159

COTTER PIN

3/32" x 5/8"

2шт.
