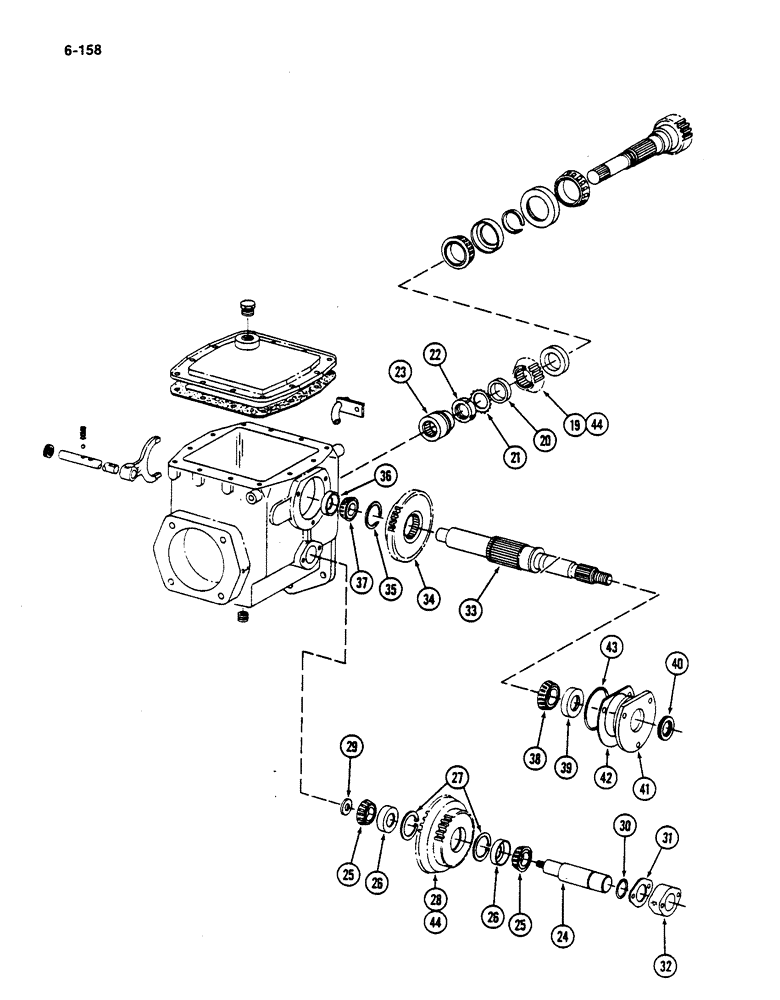

Запчасти Case IH 782 (6-158) - DRUM DRIVE (03) - POWER TRAIN

19

NSS

NOT SOLD SEPARAT

GEAR - bevel pinion, 18 teeth (Order gear set 75827C91) (Continued from Page 6-157)

1шт.

20

107500C1

SPACER

- bevel, Serial Range: gear-nut

1шт.

21

55-2065

LOCK WASHER,Type TW-065

WASHER - bevel gear lock

1шт.

22

271254

NUT

- bevel gear lock

1шт.

23

184310C91

COUPLING

- input

1шт.

ITEM 23 184310C91 COUPLING ( 11 X 11 SPLINES )

1шт.

ITEM 23 130941C1 COUPLING ( 11 X 21 SPLINES )

1шт.

24

107318C1

SHAFT

- intermediate

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

25

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING - intermediate shaft cone

2шт.

26

572564R1

BEARING CUP

BEARING - intermediate shaft cup

2шт.

27

28141R1

RING - snap (Replaces 513010R1)

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - bevel spur cluster (Order gear set 75827C91)

1шт.

29

121536C1

WASHER

- intermediate shaft

1шт.

30

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- 1-1/16 ID x 3/32 inch width (27 ID x 2 mm width)

1шт.

31

75819C1

PACKAGE

KIT - intermediate shaft retainer shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

32

107317C2

RETAINER

- intermediate shaft

1шт.

19712R1

PIN,3/16" x 2 1/4", Coiled

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

- hex, 3/8 NC x 1-5/8 inch

1шт.

33

184135C1

SHAFT

- drum drive (Low drum P.I.N. 682 and after) (High drum P.I.N. 2125 and after)

1шт.

33

107316C1

SHAFT

- drum drive (Low drum P.I.N. 507 thru 681) (High drum P.I.N. 507 thru 2124)

1шт.

34

107259C1

GEAR

- drum drive sliding, 49 teeth

1шт.

35

381486R1

SNAP RING,#187, 1.759", Ext

RING - snap

1шт.

36

371883R1

BEARING CUP

- Drum drive shaft, inner

1шт.

37

130865C91

BEARING

- drum drive shaft cone, inner

1шт.

38

184148C91

BEARING

- drum drive shaft cone, outer (Low drum P.I.N. 682 and after) (High drum P.I.N. 2125 and after)

1шт.

38

459456R91

CONE

BEARING - drum drive shaft cone, outer (Low drum P.I.N. 507 thru 681) (High drum P.I.N. 507 thru 2124)

1шт.

39

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING - drum drive shaft cup, outer

1шт.

40

539100R1

OIL SEAL

- drum drive shaft oil

1шт.

41

107250C1

CAGE

- drum drive bearing

1шт.

NLS

NO LONGER SERVICED

3шт.

42

75818C1

PACKAGE

- drum drive and input shaft bearing shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.076 mm

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.127 mm

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.178 mm

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.762 mm

3шт.

43

22410R1

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- 2-7/8 ID x 1/8 inch width (73 ID x 3 mm width)

1шт.

44

75827C91

GEAR

SET - matched bevel

1шт.
