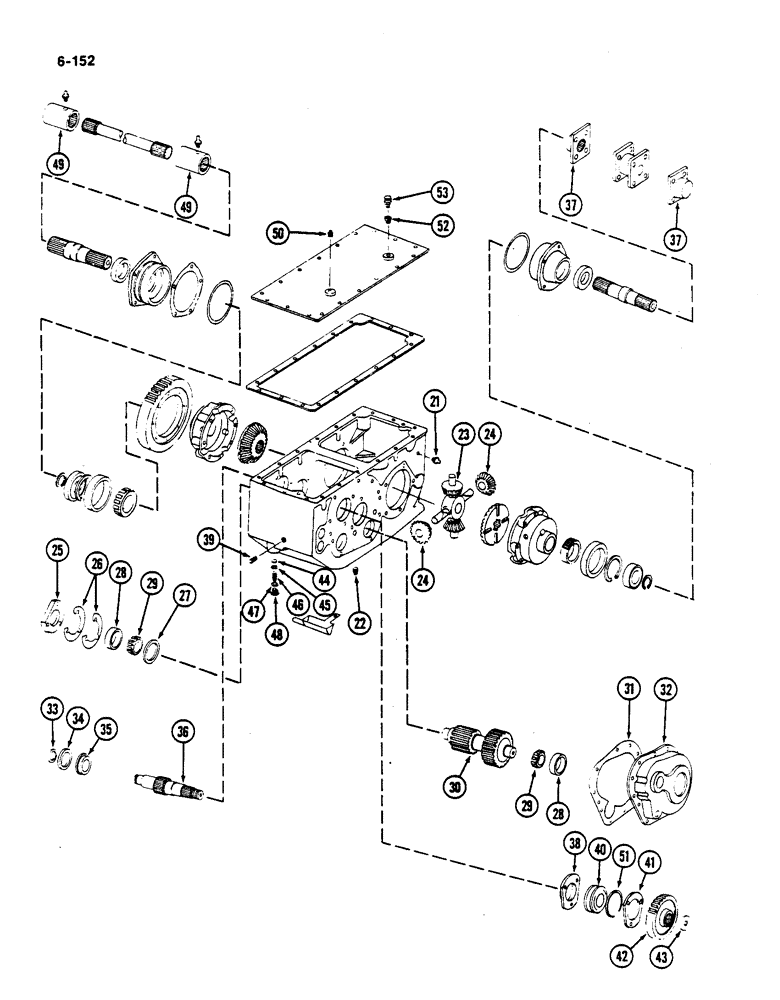

Запчасти Case IH 782 (6-152) - TRANSMISSION TRANSMISSION CASE DIFFERENTIAL SHAFT & TRANSMISSION INTERMEDIATE SHAFT (03) - POWER TRAIN

21

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

- transmission case oil (Prior to 1980) (Continued from Page 6-151)

1шт.

21

444814

PLUG,Hex Hd, 1/8"-27, Brass

- hex head filler, 1/8-27 inch thread (1981 and after)

1шт.

22

321085C1

PLUG - square head magnetic pipe, 3/4-14 inch thread

1шт.

23

388093R1

U-JOINT SPIDER

SPIDER - differential

1шт.

24

360961R1

GEAR

PINION - bevel, 15 teeth

4шт.

25

573971R2

CAP

- pinion shaft

1шт.

27347R1

BOLT,Hex, 3/8" - 16 x 1 1/8" , Gr 8

- hex, pre-torque, 3/8 NC x 1-1/8 inch (Grade 8)

3шт.

26

381222R1

SHIM

- pinion left bearing 0.007 inch

1шт.

26

405626R1

SHIM

- pinion left bearing 0.003 inch

1шт.

27

548585R1

BEARING WASHER,71.17mm ID x 74.52mm OD x 3.61mm Thk

- pinion shaft left bearing seal

1шт.

28

50213V

BEARING CUP

BEARING - pinion shaft cup

2шт.

29

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - pinion shaft cone

1шт.

30

107301C1

GEAR

- pinion shaft, 13 and 23 teeth

1шт.

31

573997R2

GASKET

- change gear cover

1шт.

32

121811C2

COVER ASSY

COVER - change gear (Low drum P.I.N. 682 and after) (High drum P.I.N. 2125 and after)

1шт.

32

395647R11

COVER

- change gear, with pins (Low drum P.I.N. 507 thru 681) (High drum P.I.N. 507 thru 2124)

1шт.

141262

PIN,7/16" x 7/8"

- hardened dowel, 7/16 x 7/8 inch

2шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head filler, 1/2-14 inch thread

1шт.

27347R1

BOLT,Hex, 3/8" - 16 x 1 1/8" , Gr 8

- hex, pre-torque, 3/8 NC x 1-1/8 (Grade 8)

10шт.

33

370504R1

RING

- intermediate shaft retaining

1шт.

34

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

- transmission case seal

1шт.

35

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - intermediate shaft left

1шт.

36

107300C1

SHAFT

- intermediate transmission

1шт.

382879R1

NUT

- shaft

1шт.

37

214639C1

HUB

- jackshaft

2шт.

38

395644R1

CAGE

- intermediate shaft bearing right

1шт.

39

444588

PLUG,Sq Hd, 1/2"-14 NPTF

- square head automotive pipe, 1/2-14 inch thread

1шт.

40

395643R91

BEARING, ROLLER, CYL,40mm ID x 80mm OD x 30.1mm W

- intermediate shaft

1шт.

41

395645R1

RETAINER

- intermediate shaft bearing cage

1шт.

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

BOLT - hex nylon pellet lock, 5/16 NC x 7/8 inch

3шт.

42

121893C1

GEAR

- change drive, 31 teeth

1шт.

43

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- shaft

1шт.

44

17014R1

BALL

- chrome steel, 7/16 inch

2шт.

45

17016R1

BALL,1/2" Dia

2шт.

46

588801R1

SPRING

- ball detent

2шт.

47

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

1шт.

48

9410358

PLUG

- straight thread O-ring boss, 9/16-18 inch thread

2шт.

49

59890C1

PORT

SLEEVE - jackshaft

2шт.

Ref #49A - Replaced by 438-31636 Pin 1/4 X 2 1/4" 06/25/96

1шт.

22957R1

PIN - spring, 1/4 x 2-1/2 inch

2шт.

50

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head automotive pipe, 3/4-14 thread

1шт.

51

ST419

RING

- bearing retaining

1шт.

52

144041

SEAL,3/4" NPT Male x 3/8" NPT Fem

ADAPTER - hex pipe, 3/4 to 3/8 inch

1шт.

53

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING - short grease with felt washer, 3/8 inch PTF

1шт.
