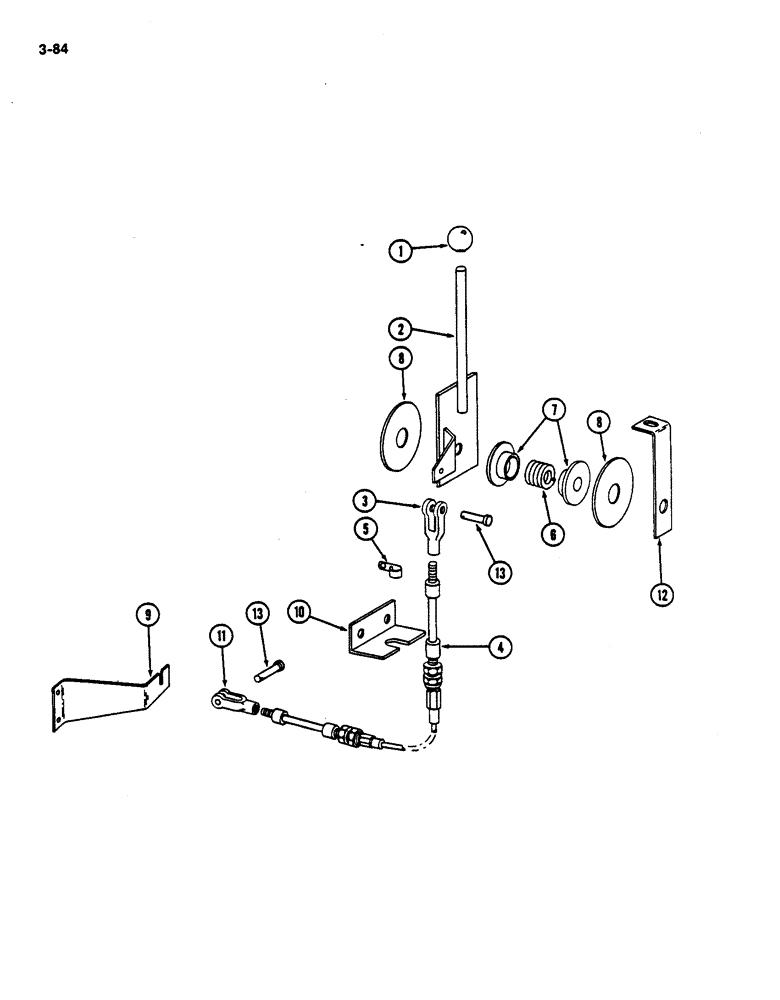

Запчасти Case IH 782 (3-84) - GOVERNOR AND SHUT-OFF CONTROLS, LOW DRUM P.I.N. 682 AND AFTER HIGH DRUM P.I.N. 2125 AND AFTER (02) - FUEL SYSTEM

1

215623C1

KNOB

- throttle control lever

1шт.

2

209886C1

CONTROL

- throttle rod

1шт.

3

110322

CLEVIS - light adjustable, No. 10-32 x 1-9/16 inch

1шт.

4

1329382C1

CABLE

- governor control cable (Replaces 673099R91)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

5

400505R1

CLAMP

CLIP - governor control cable

2шт.

6

55770D

SPRING

- throttle control

1шт.

7

11840R

WASHER

GUIDE - spring

2шт.

8

58666D

FRICTION WASHER

- throttle friction

2шт.

9

222797C1

SUPPORT

- throttle rear-bracket

1шт.

180091

SPRING

- hex, 5/16 NC x 2-1/2 inch

1шт.

10

202366C1

SUPPORT

- throttle cable

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

673428R1

YOKE

CLEVIS - governor control cable

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

12

209927C1

SUPPORT

- throttle pivot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

138082

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 0.580 inch

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.
