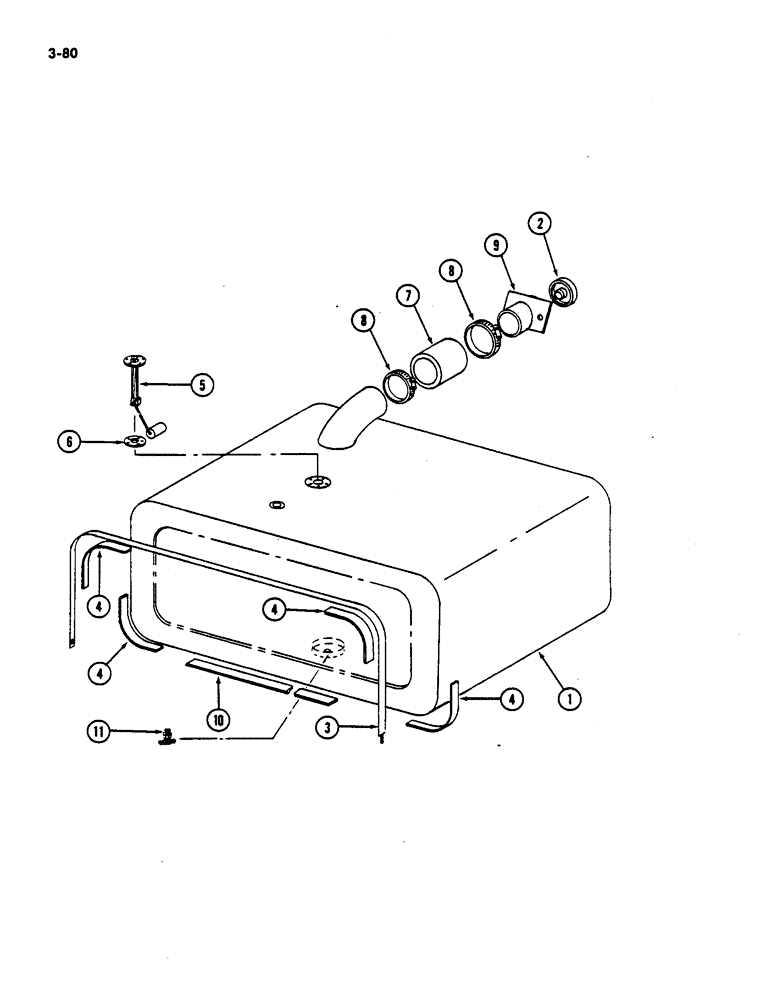

Запчасти Case IH 782 (3-80) - FUEL TANK AND CONNECTIONS (02) - FUEL SYSTEM

1

215280C2

FUEL TANK

TANK ASSEMBLY - fuel

1шт.

2

23995DC

FILLER CAP

CAP - fuel tank

1шт.

3

214835C1

BAR

CLAMP - fuel tank

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

NSS

NOT SOLD SEPARAT

LINING - tank support, 108 inch (2743 mm) (Cut from 990541R1, 50 foot roll) (15 m)

8шт.

990541R1

FIXING STRIP

SEAL - foam, 50 foot (15 m) roll

1шт.

5

209331C1

SENDER UNIT

GAUGE - fuel level sending

1шт.

423595

SCREW,Hex Hd, #10-24 x 1/2", w/LW

BOLT - hex, with lock washer, No. 10 x 1/2 inch

5шт.

6

104812C1

GASKET

- sending unit

1шт.

7

215553C1

HOSE,63.50 mm ID x 89.00 mm, SAE 30R1, SAE J30B

- Fuel tank filler 63.50 mm ID x 89.00 mm, SAE 30R1, SAE J30B

1шт.

8

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP - hose, No. 48

2шт.

9

215284C1

NECK FILLER

TUBE - fuel tank filler

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

204023C1

SEALING STRIP

- strip

1шт.

11

118536

VALVE

- drain cock, 3/8 inch taper pipe thread

1шт.
