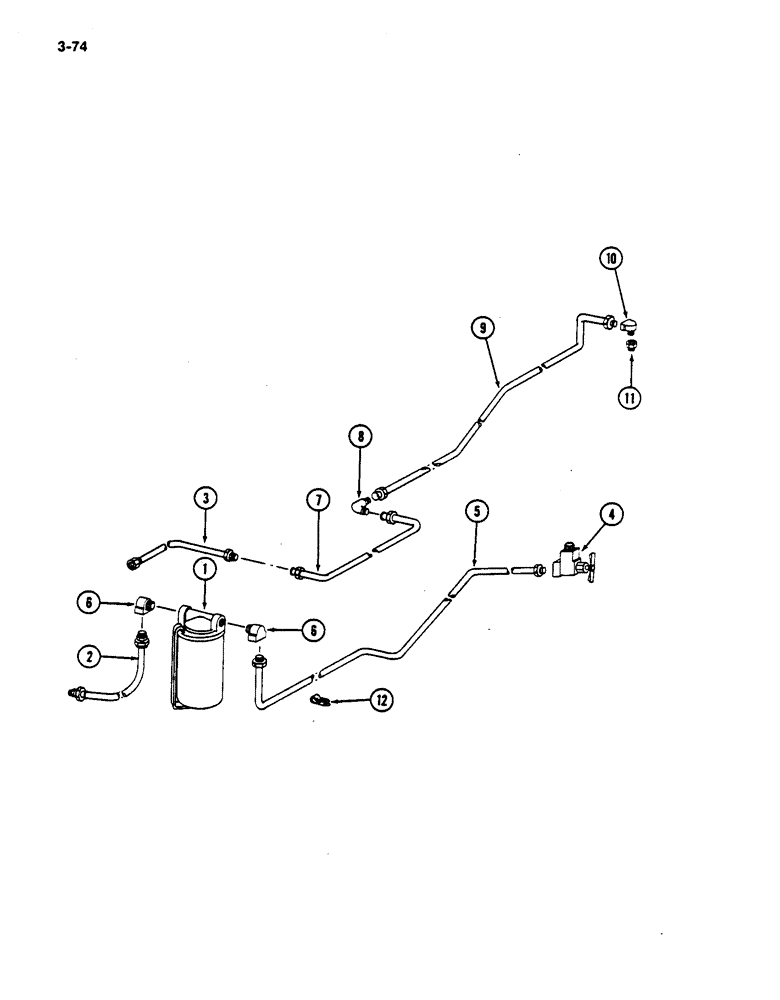

Запчасти Case IH 782 (3-74) - FUEL PIPES AND CONNECTIONS (02) - FUEL SYSTEM

1

672821R91

FILTER

ASSEMBLY - water (See Page 3-77)

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

2

215068C2

HOSE ASSY.

HOSE - fuel supply

1шт.

3

215069C1

HOSE ASSY.

HOSE - fuel return

1шт.

4

390069R91

SHUT-OFF VALVE

VALVE - fuel shut-off

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - fuel tank to filter, 85 inch (2159 mm) (Cut from 995063R1, 50 foot roll) (15 m)

1шт.

995063R1

TUBE

TUBING - fuel, 50 foot (15 m) roll

1шт.

6

193004

ELBOW

- 90 degree inverted flared tube, 1/4-18 inch thread

2шт.

7

NSS

NOT SOLD SEPARAT

TUBE - fuel return, front, 40 inch (1016 mm) (Cut from 995062R1, 50 foot roll) (15 m)

1шт.

995062R1

TUBE

TUBING - fuel, 50 foot (15 m) roll

1шт.

8

118811

SHUTTER

ELBOW - 90 degree, 45 degree flared tube, 1/2-20 inch thread

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - fuel return, rear, 53 inch (1346 mm) (Cut from 995062R1, 50 foot roll) (15 m)

1шт.

10

442411

ELBOW

- 90 degree inverted flared tube, 1/8-27 inch thread

1шт.

11

444024

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING - automotive pipe reducer, 1/4-18 to 1/8-27 inch thread

1шт.

12

299404C1

CLAMP

- coated tube, 3/8 diameter (On plant guide)

1шт.
