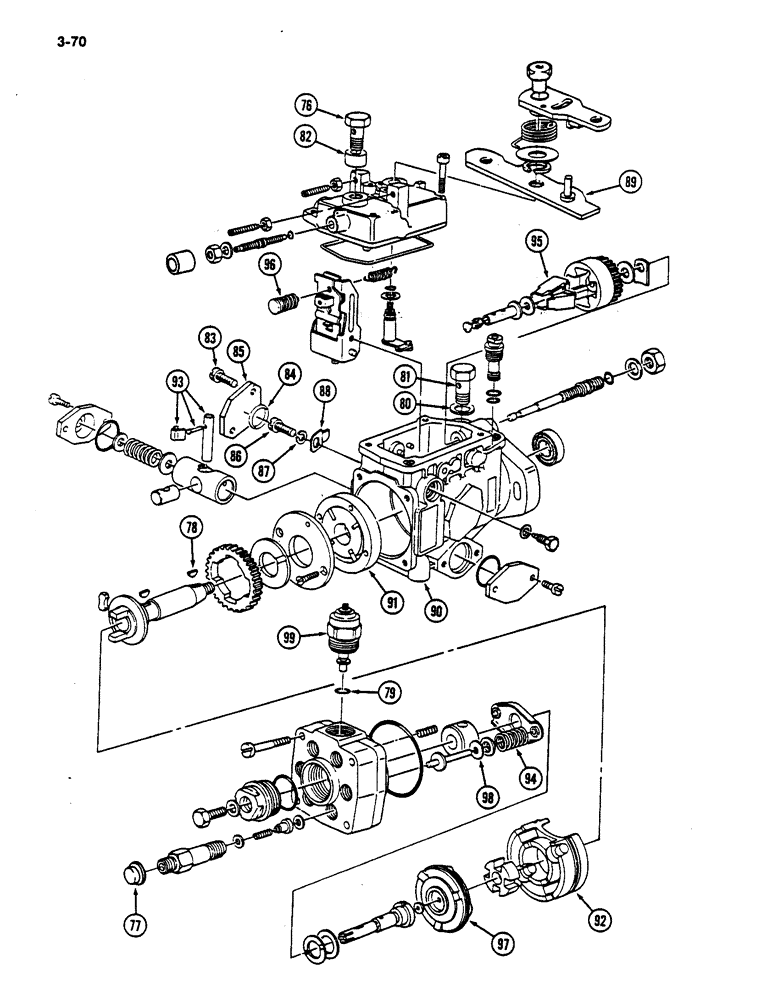

Запчасти Case IH 782 (3-70) - FUEL INJECTION PUMP, D358 DIESEL ENGINE (02) - FUEL SYSTEM

3228149R91

PUMP

ASSEMBLY - fuel injection (Model No. VE6/12F 1350 R64) (Continued from Page 3-69)

1шт.

76

3079344R1

BANJO BOLT

SCREW - hollow

1шт.

77

3079097R2

CAP

- protection

6шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

78

3079255R1

KEY

- Woodruff

1шт.

79

3078363R1

O-RING

- magneto

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

80

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

81

3079044R1

SCREW

- plug

1шт.

82

3079489R1

SLEEVE

- protection

1шт.

83

933330R1

DISC

SCREW - pan head, cover

2шт.

84

3079203R1

O-RING

- cover

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

85

3079346R1

COVER

- plate

1шт.

86

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head, pointer

1шт.

87

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - bent spring

1шт.

88

3132598R1

INDICATOR

POINTER - timing

1шт.

89

3079367R1

LEVER

- adjusting

1шт.

90

3079406R91

HOUSING

WITH ADVANCE PISTON ASSEMBLY

1шт.

91

3079194R91

PUMP

ASSEMBLY - charge

1шт.

92

3079523R91

RING

RETAINER ASSEMBLY - roller

1шт.

93

3079377R91

PIN

SET - advance piston pin

1шт.

94

3079211R91

SPRING

SET - plunger

1шт.

95

3079245R91

PACKAGE, REPAIR

GOVERNOR PARTS SET

1шт.

96

3079246R91

PACKAGE, REPAIR

PIN AND SPRING SET

1шт.

97

3079514R1

PLATE

CAM - FACE

1шт.

98

3079348R91

WASHER

- selection

2шт.

99

3079515R1

SWITCH

MAGNETO ASSEMBLY (Replaces 3079515R91)

1шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

- 5.3 x 11 x 1 mm

1шт.

905425R1

NUT

- hex, M5-8 - A21

1шт.

3079244R91

GASKET KIT

injection, pump, Includes: Ref. 76, 77 and 84 on this figure and Ref. 6, 10, 15, 26 on Figure 3-64 and Ref. 51, 56, 60, 69, 71, 73 and 74 on Figure 3-68

1шт.
