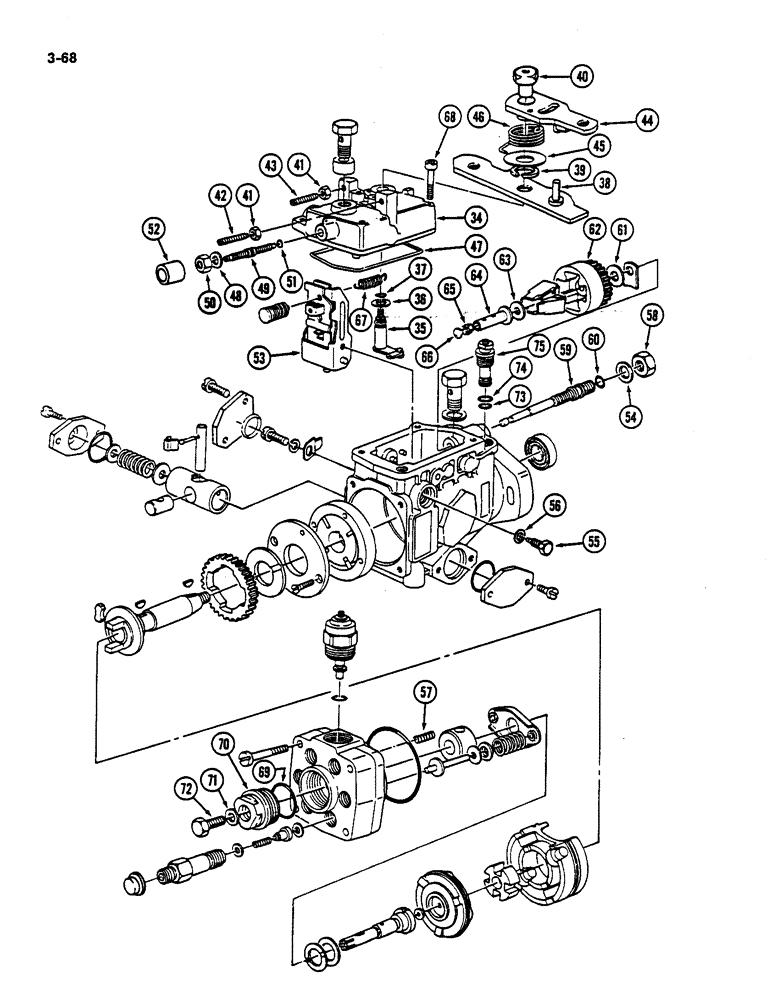

Запчасти Case IH 782 (3-68) - FUEL INJECTION PUMP, D358 DIESEL ENGINE (02) - FUEL SYSTEM

3228149R91

PUMP

ASSEMBLY - fuel injection (Model No. VE6/12F 1350 R64) (Continued from Page 3-67)

1шт.

3079517R1

COVER

ASSEMBLY - housing

1шт.

34

3079520R1

HOUSING

COVER - housing

1шт.

35

3079365R1

SHAFT

- control

1шт.

36

3079275R1

WASHER

- shim

2шт.

37

3078354R1

O-RING,2mm Thk x 6.5mm ID

RING - packing

1шт.

38

3079537R1

LEVER

1шт.

39

847239R1

LOCK WASHER

- lock

1шт.

40

3136261R1

NUT

- round neck hex

1шт.

41

30208R1

NUT,M6, Cl 10

- hex, M6

2шт.

42

3079404R1

BOLT

BOLT - threaded, long

1шт.

43

3079343R1

O-RING

BOLT - threaded, short

1шт.

44

3136399R1

LEVER

- adjusting

1шт.

45

3136262R1

THRUST WASHER

WASHER - shim

1шт.

46

3136260R1

SPRING

- coiled

1шт.

47

3079481R1

GASKET

RING - packing

1шт.

48

397692C1

WASHER

1шт.

49

3079307R1

SET SCREW

BOLT - threaded, 26 mm

1шт.

49

3079308R1

BOLT

- threaded, 24 mm

1шт.

49

3079309R1

BOLT

- threaded, 28 mm

1шт.

50

3079429R1

NUT

- hex

1шт.

51

898747H1

O-RING

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

52

3079311R1

SLEEVE

- distance

1шт.

53

3079521R1

LEVER

- throttle

1шт.

54

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- flat, A10.5

1шт.

55

3079508R1

BOLT,Hex, 5/16" x 1", Gr 5

SCREW - pivot

2шт.

56

3053133R1

SEALING RING,M8 x 11.5 x 1

RING

2шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

57

3079488R1

SPRING

- pressure

2шт.

58

3079315R1

NUT

- slotted

1шт.

59

NSS

NOT SOLD SEPARAT

SHAFT - governor

1шт.

60

3079317R1

O-RING

O-RING - throttle axle

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

61

3079318R1

WASHER

- 0.055 inch/1.40 mm

1шт.

62

3079321R91

PINION

FLYWHEEL ASSEMBLY

1шт.

63

3079322R2

WASHER

- shim

1шт.

64

3079469R1

SLEEVE

- governor

1шт.

65

3079470R1

CAP

- sealing

1шт.

66

3079569R1

PLUG

- closing, 0.307 inch/7.70 mm

1шт.

66

3079578R1

PLUG

- closing, 0.374 inch/9.50 mm

1шт.

67

3079522R1

SPRING

- extension

1шт.

68

3079158R2

BOLT,Hex, 5/16" x 5/8", Gr 5

SCREW - cover

4шт.

69

3079343R1

O-RING

O-RING - plug

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

70

3079238R2

PLUG

- distributor head

1шт.

71

3055133R1

CROWN WHEEL

RING - sealing

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

72

3079344R1

BANJO BOLT

SCREW - bleeder

1шт.

73

3078535R1

O-RING

- regulator valve, small

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

74

3078358R1

O-RING

- regulator valve, large

1шт.

Part of injection pump gasket kit P/N 3079244R91

1шт.

75

3079484R1

REGULATOR

VALVE - regulator

1шт.
