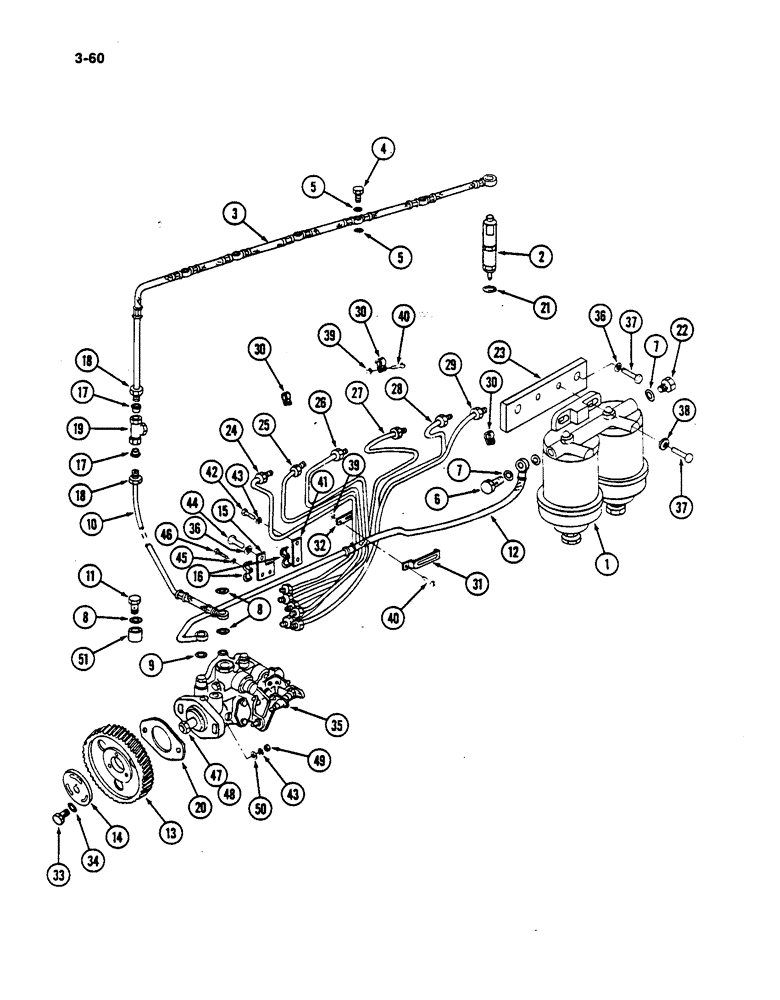

Запчасти Case IH 782 (3-60) - FUEL INJECTION PUMP AND CONNECTIONS, D358 DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (See Page 3-63)

1шт.

2

REF

INSTRUCTION

NOZZLE - holder assembly, injection (See Page 3-73)

6шт.

3

3218122R1

LINE

ASSEMBLY - leak

1шт.

4

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

- inlet union

6шт.

5

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm

12шт.

6

713098R1

SCREW

- inlet union

1шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

3шт.

8

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

3шт.

9

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

10

3218909R1

TUBE

TUBE ASSEMBLY - overflow

1шт.

11

3216451R1

SCREW

- inlet union

1шт.

12

3228124R1

TUBE,240, 205 mm Length

HOSE AND TUBE ASSEMBLY - fuel filter to injection pump

1шт.

13

3218450R1

GEAR

- injection pump

1шт.

14

3218451R1

HUB

- injection pump gear

1шт.

15

3055678R1

PLATE

LINK - fuel line fixing ("L" shape)

1шт.

16

3055386R1

CLAMP

CLIP - fuel line

2шт.

17

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

SLEEVE - ferrule

2шт.

18

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - tube

2шт.

19

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

T-UNION

1шт.

20

3055384R1

GASKET

- fuel injection pump

1шт.

21

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

22

3056600R1

ADAPTER

1шт.

23

3144325R1

PLATE

BRACKET - fuel filter

1шт.

24

3228117R1

PIPE

TUBE ASSEMBLY - injection, cylinder 1

1шт.

25

3228118R1

PIPE

TUBE ASSEMBLY - injection, cylinder 2

1шт.

26

3228119R1

PIPE

TUBE ASSEMBLY - injection, cylinder 3

1шт.

27

3228121R1

PIPE

TUBE ASSEMBLY - injection, cylinder 4

1шт.

28

3228122R1

PIPE

TUBE ASSEMBLY - injection, cylinder 5

1шт.

29

3228123R1

PIPE

TUBE ASSEMBLY - injection, cylinder 6

1шт.

30

3132770R1

COLLAR

CLAMP - tube

3шт.

31

3132838R1

BRACKET

CLAMP - tube, upper part

1шт.

32

3132839R1

CLAMP

- tube, lower part

1шт.

33

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

34

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- 8.8 x 21 x 2.5 mm

3шт.

35

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (New) (See Page 3-65)

1шт.

36

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

37

NLS

NO LONGER SERVICED

4шт.

38

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

39

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- slotted pan head machine

4шт.

40

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- lock

4шт.

41

3055458R1

LARGE PLATE

LINK - fuel line fixing (Straight)

1шт.

42

179814

SPACER

1шт.

43

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

46

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

47

3141587R2

NUT

- hex, M14

2шт.

48

933967R1

LOCK WASHER,M14

WASHER - lock, 14 mm

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

50

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- 0.335 x 0.750 x 0.098 (9 x 19 x 3 mm)

2шт.

51

3218465R1

SPACER

BUSHING - 12.5 x 12 mm steel

1шт.
