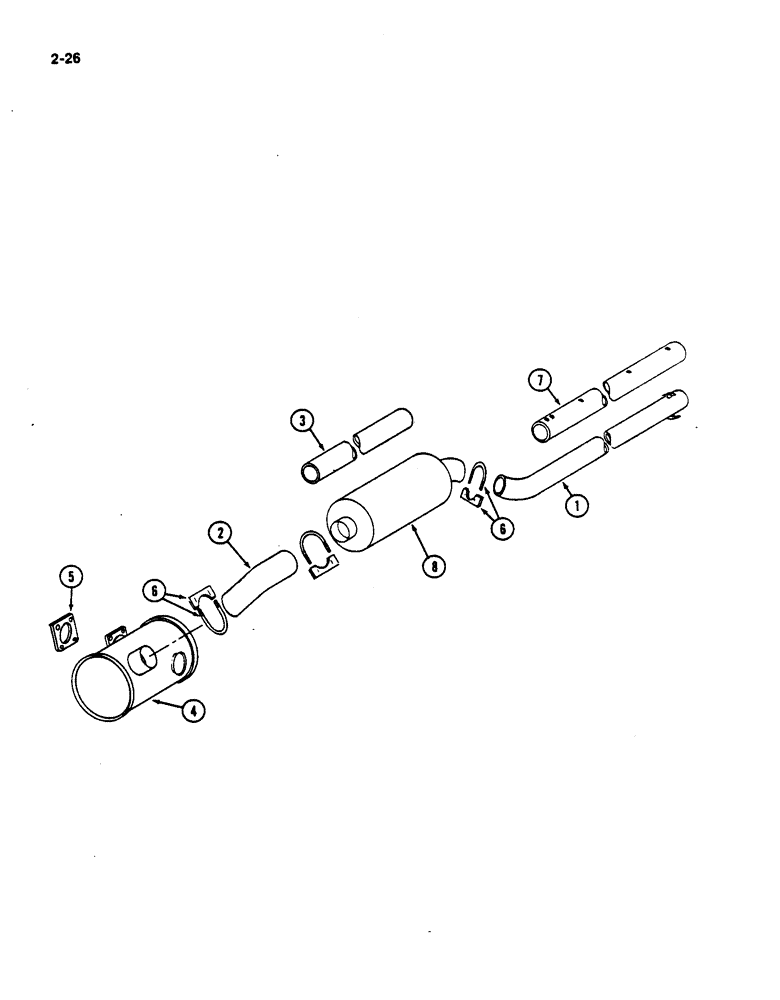

Запчасти Case IH 782 (2-26) - EXHAUST SYSTEM LOW DRUM P.I.N. 507 THRU 681 HIGH DRUM 507 THRU 2124 (01) - ENGINE

1

215107C1

TUBE

- tail pipe

1шт.

2

215106C1

ELBOW - exhaust pipe

1шт.

3

216332C1

TUBE,71 mm OD

- exhaust pipe

1шт.

4

201930C1

MUFFLER

- exhaust

1шт.

120369

NUT,3/8"-24, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

673331R2

SHIM

GASKET - muffler

1шт.

6

266316C91

CLAMP ASSEMBLY - exhaust pipe

1шт.

machines without spark arrester

3шт.

machines with spark arrester

1шт.

6

644196C1

CLAMP

ASSEMBLY - spark arrester

2шт.

7

214825C2

TUBE

- exhaust shield

1шт.

24240R1

SCREW - pan head slotted tapping, No. 10-16 x 3/8 inch

6шт.

Ref #7A - Replaced by 201946C1 Rivet 06/24/96

1шт.

8

204229C1

ARRESTER - spark

1шт.
