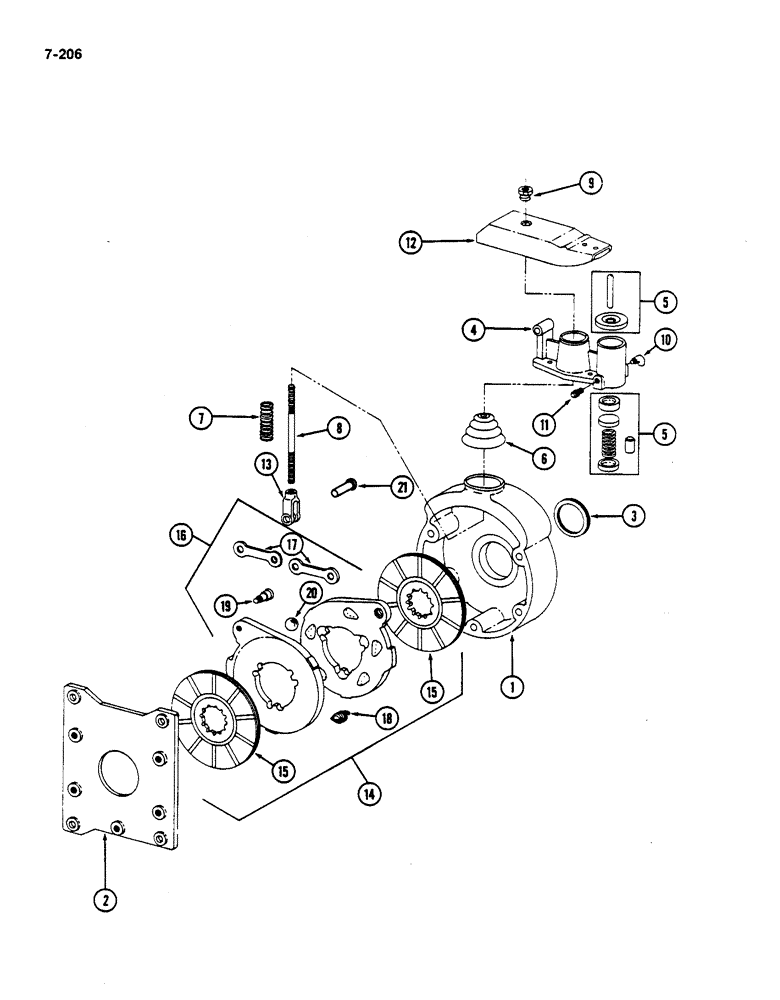

Запчасти Case IH 782 (7-206) - MASTER BRAKES (5.1) - BRAKES

1

574914R2

HOUSING

- wheel brake

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

180162

SCREW,Hex, 7/16" - 14 x 3 1/2", Gr 5

BOLT - hex, 7/16 NC x 3-1/2 inch

10шт.

2

215486C1

PLATE

- brake left

1шт.

2

215487C1

PLATE

- brake right

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 mm)

8шт.

3

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing dirt

2шт.

4

663920R11

CYLINDER

ASSEMBLY - brake wheel left

1шт.

4

662614R11

BRAKE ASSY.

CYLINDER ASSEMBLY - brake wheel right

1шт.

5

665989R91

PISTON

KIT - brake service

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

NSS

NOT SOLD SEPARAT

SPACER

1шт.

NSS

NOT SOLD SEPARAT

CUP

2шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

NSS

NOT SOLD SEPARAT

BOOT

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

6

381699R1

BOOT

- wheel brake

2шт.

7

667480R1

SPRING

- brake compression

2шт.

8

665995R1

ROD

- brake pull

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

- round head square neck, 5/16 NC x 1-1/4 inch

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

9

354630R1

NUT

- ball seat

2шт.

NLS

NO LONGER SERVICED

- hex, 7/16 inch NF

6шт.

PO10534

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch (12 x 32 x 3 mm)

4шт.

10

225810

ELBOW UNION

ELBOW - 90 degree inverted flared tube, 1/8-27 inch thread

2шт.

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

- auto pipe, 1/8-27 inch thread

2шт.

11

660901R1

VALVE

- bleeder

2шт.

12

165283C1

LEVER

- brake

2шт.

23287R1

PIN,1/2" x 2 1/4"

- square end straight, 1/2 x 2-1/4 inch

2шт.

13

357043R1

CLEVIS,3/8" - 24

YOKE - brake operating

2шт.

14

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - wheel

2шт.

15

121961C92

CLUTCH

DISC - middle

2шт.

16

366182R93

CLUTCH DISC

DISC ASSEMBLY - actuating

2шт.

17

357113R2

LINK

- actuating - plain (Replaces 357114R91)

2шт.

18

619731C1

SPRING

- extension

3шт.

19

354642R1

STUD

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

20

17028R1

BALL,7/8" Dia

5шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16 x 1.190 inch

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.
