Запчасти Case IH 782 (7-204) - BRAKE MASTER CYLINDER, LOW DRUM MACHINES P.I.N. 507 THRU 681 HIGH DRUM MACHINES P.I.N. 507 THRU 2124 (5.1) - BRAKES

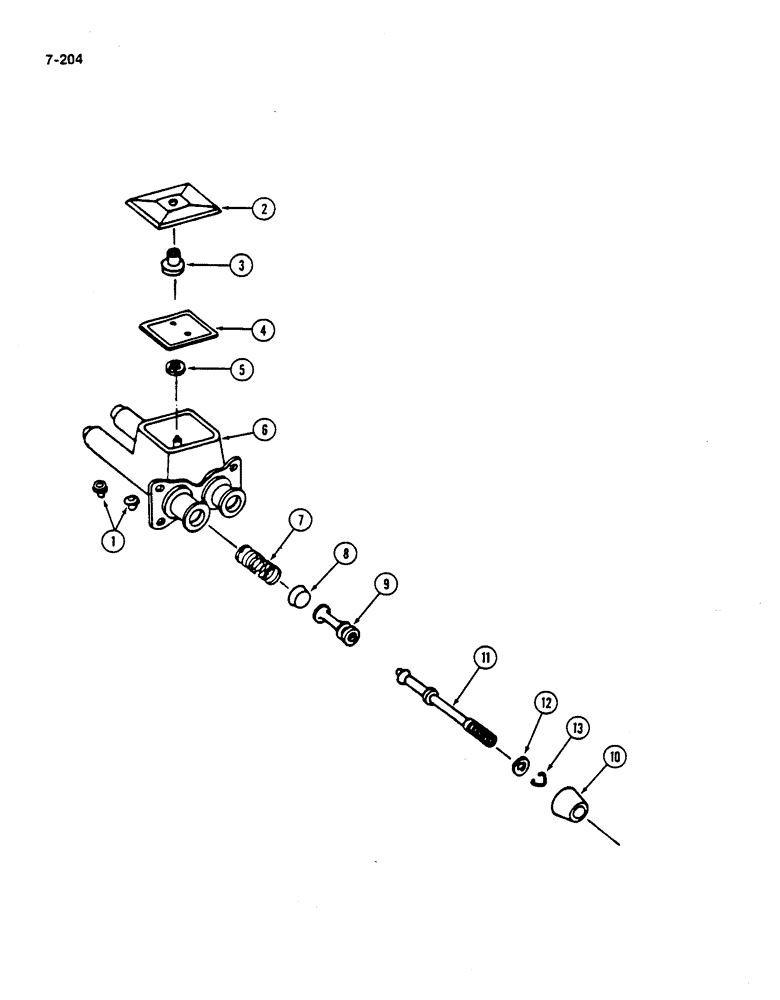

Схема запчастей Case IH 782 - (7-204) - BRAKE MASTER CYLINDER, LOW DRUM MACHINES P.I.N. 507 THRU 681 HIGH DRUM MACHINES P.I.N. 507 THRU 2124 (5.1) - BRAKES
4
3
12
11
6
2
5
1
10
7
8
13
9

Артикул

Название

Примечание

Количество

672828R91

CYLINDER

ASSEMBLY - brake master (Not serviced as an assembly, order component parts)

1шт.

1

284588C1

INSERT

- body

1шт.

2

863351R1

CAP - filler

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

1шт.

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch (7 x 16 x 1 mm)

1шт.

3

673857R1

SLEEVE

- automatic adjuster

1шт.

4

868447R1

GASKET

- filler cap

1шт.

5

423312C2

RING

- external retaining

1шт.

6

NSS

NOT SOLD SEPARAT

BODY (Order cylinder assembly 222834C91)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING (Order kit 201594C1)

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston (Order kit 201594C1)

2шт.

9

NSS

NOT SOLD SEPARAT

PISTON (Order kit 201594C1)

2шт.

10

NSS

NOT SOLD SEPARAT

BOOT (Order kit 201594C1)

2шт.

11

965560R1

ROD

- push

2шт.

12

965561R1

RETAINER

- push rod

2шт.

13

NSS

NOT SOLD SEPARAT

RING - lock (Order kit 201594C1)

2шт.

201594C1

PACKAGE

KIT - cylinder repair (Consists of reference numbers 7, 8, 9, 10 and 13)

1шт.

Выбрано товаров: 17
